SKU: NA49/22R-NTN

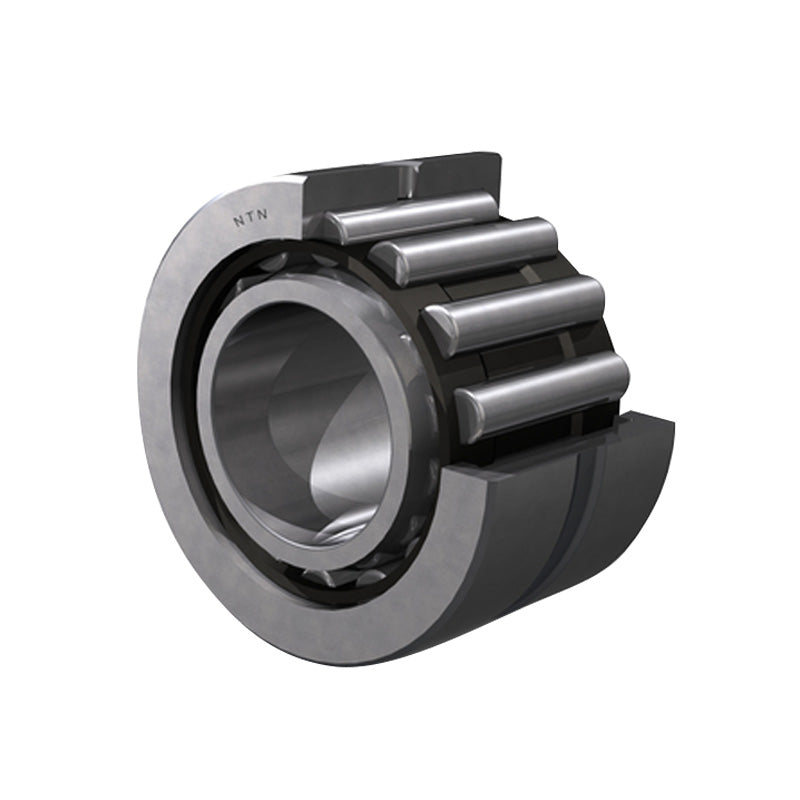

NTN NA49/22R Machined Needle Roller Bearing with Shaft Sleeve 22x39x17mm - Allow 2-3 Days

NTN NA49/22R Machined Needle Roller Bearing with Shaft Sleeve 22x39x17mm - Allow 2-3 Days
Regular price CHF 20.00 ex VAT
Regular price Sale price CHF 20.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 17.54
4+ CHF 16.83
9+ CHF 16.48
19+ CHF 15.95
49+ CHF 15.59
99+ CHF 14.71
499+ CHF 12.40
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 22mm
D - Outside diameter 39mm
C - Width of bearing, drawn cup or outer ring 17mm
F - Under roller diameter 28mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.8mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 23.2 kN
C0r - Static load rating 29.3 kN
N - Grease lubrication limit speed 9500 tr/min
N - Oil lubrication limit speed 14000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 24mm
Da max - Outer ring maximum shoulder diameter 37mm
ras max - Maximum shaft & housing fillet radius 0.3mm
