SKU: NA4902LL/3AS-NTN

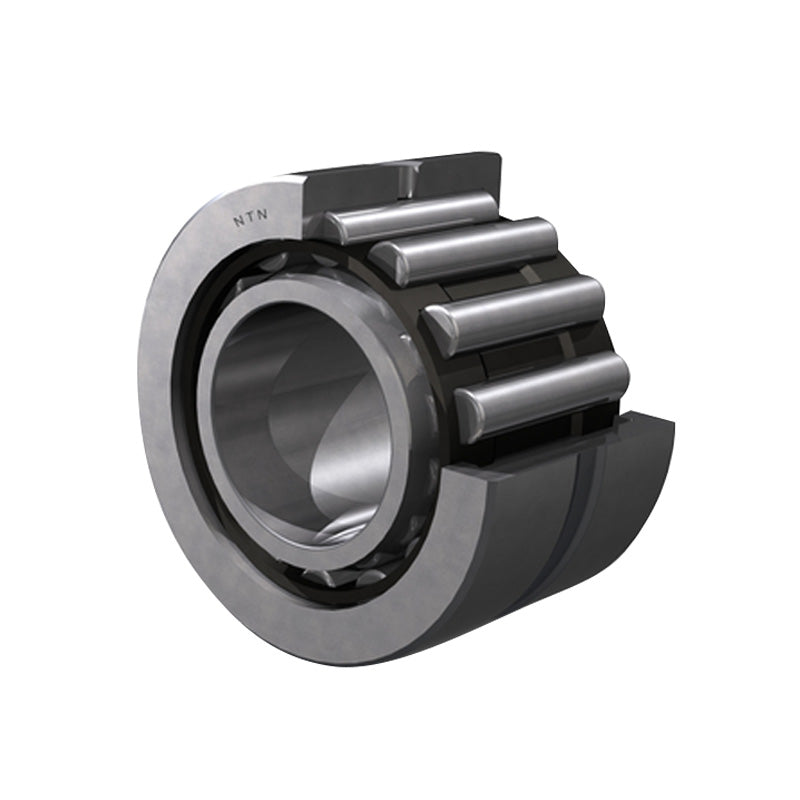

NTN NA4902LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 15x28x13mm

NTN NA4902LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 15x28x13mm
Regular price CHF 23.00 ex VAT
Regular price Sale price CHF 23.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 18.07
4+ CHF 17.05
9+ CHF 16.85
19+ CHF 16.65
49+ CHF 16.44
99+ CHF 16.24
499+ CHF 15.23
999+ CHF 15.02
1999+ CHF 14.82
2999+ CHF 14.62
4999+ CHF 14.21
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 15mm
D - Outside diameter 28mm
B - Width of bearing / Inner ring 14mm
C - Width of bearing, drawn cup or outer ring 13mm
F - Under roller diameter 20mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 8.3 kN
C0r - Static load rating 11.2 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 17mm
Da max - Outer ring maximum shoulder diameter 22mm
Db max - Outer ring maximum smooth shaft shoulder diameter 26mm
ras max - Maximum shaft & housing fillet radius 0.3mm
