SKU: NA4908R-NTN

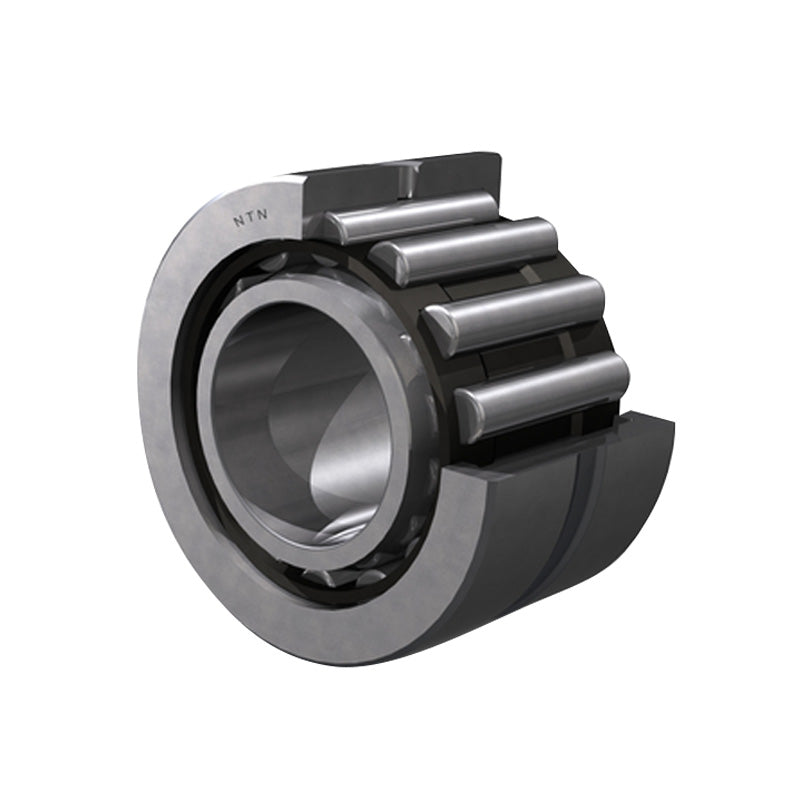

NTN NA4908R Machined Needle Roller Bearing with Shaft Sleeve 40x62x22mm - Allow 2-3 Days

NTN NA4908R Machined Needle Roller Bearing with Shaft Sleeve 40x62x22mm - Allow 2-3 Days
Regular price CHF 30.00 ex VAT
Regular price Sale price CHF 30.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 26.32
4+ CHF 25.26
9+ CHF 24.73
19+ CHF 23.93
49+ CHF 23.40
99+ CHF 22.07
499+ CHF 18.61
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 40mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 22mm
F - Under roller diameter 48mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 43.5 kN
C0r - Static load rating 66.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 44mm
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
