SKU: NA4913-EU

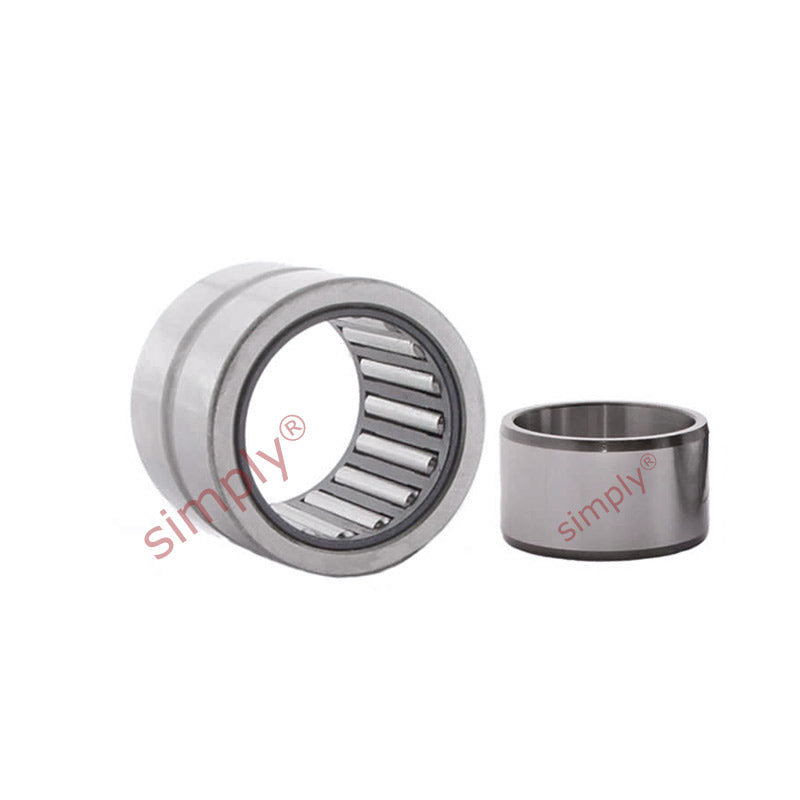

NA4913 Budget Needle Roller Bearing / Shaft Sleeve 65x90x25mm
NA4913 Budget Needle Roller Bearing / Shaft Sleeve 65x90x25mm
Regular price
CHF 14.00
ex VAT
Regular price
Sale price
CHF 14.00
ex VAT
In stock
Price Break
10+
CHF 10.48
19+
CHF 9.89
29+
CHF 9.77
39+
CHF 9.65
49+
CHF 9.53
74+
CHF 9.42
99+
CHF 8.83
199+
CHF 8.71
249+
CHF 8.59
499+
CHF 8.47
999+
CHF 8.24
Description
Description
|
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 25mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 25mm |
| Dynamic load C | 61600 N |
| Static load Co | 120000 N |
| Fatigue load limit Pu | 15300 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 72mm |
| r1r2 | 1mm |
| S (axial disp) | 1.5mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
