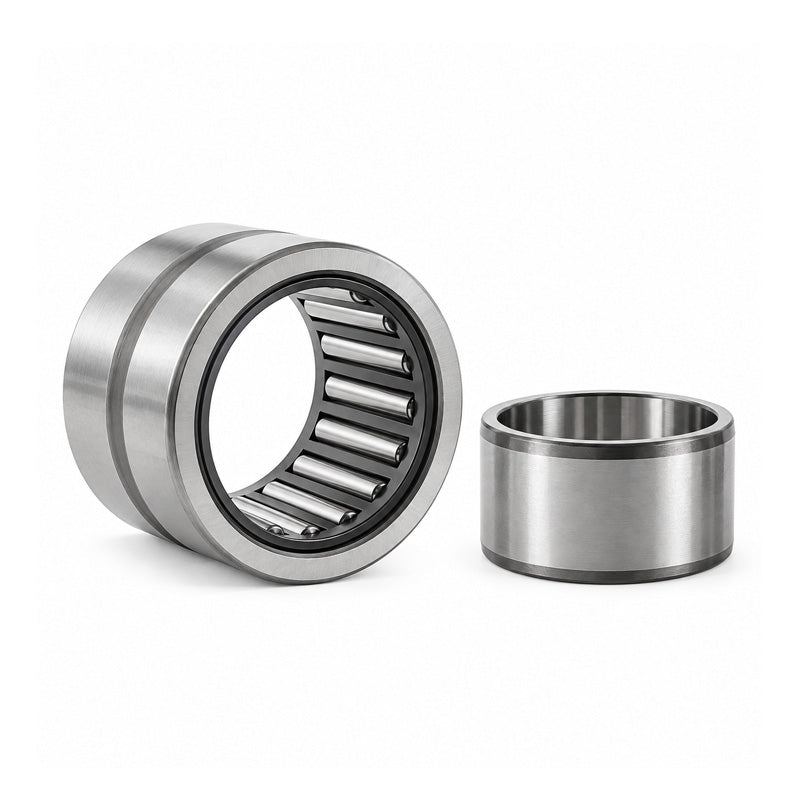

Major Brand NA4924 Needle Roller Bearing With Shaft Sleeve 120x165x45mm
Major Brand NA4924 Needle Roller Bearing With Shaft Sleeve 120x165x45mm
Regular price
CHF 354.00
ex VAT
Regular price
Sale price
CHF 354.00
ex VAT
In stock
Price Break
10+
CHF 280.88
19+
CHF 265.10
29+
CHF 261.94
39+
CHF 258.79
49+
CHF 255.63
74+
CHF 252.47
99+
CHF 236.69
199+
CHF 233.54
249+
CHF 230.38
499+
CHF 227.23
999+
CHF 220.91
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 165mm
- Width:
- 45mm
Technical
Technical
| d | 120mm |
|---|---|
| D | 165mm |
| B | 45mm |
| Dynamic load | 176000 N |
| Static load | 405000 N |
| Fatigue load limit Pu | 47500 N |
| Speed in grease | 1900 rpm |
| Speed in oil | 3000 rpm |
| F | 135mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 126.5mm |
| Da max | 158.5mm |
| ra max | 1mm |
