SKU: NA6902-MB

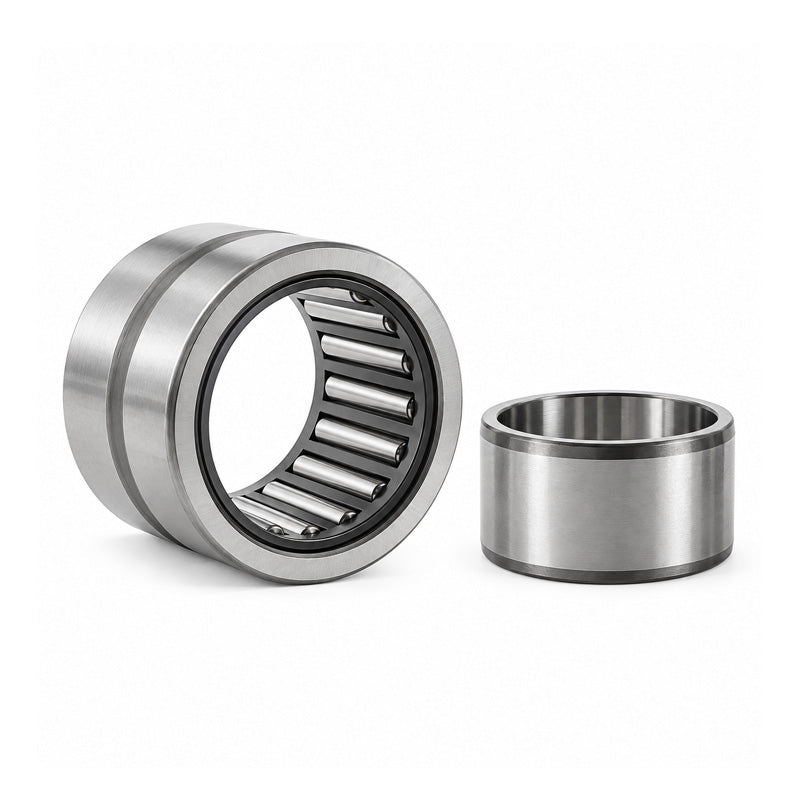

Major Brand NA6902 Needle Roller Bearing With Shaft Sleeve 15x28x23mm
Major Brand NA6902 Needle Roller Bearing With Shaft Sleeve 15x28x23mm
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
In stock
Price Break
10+
CHF 20.62
19+
CHF 19.46
29+
CHF 19.23
39+
CHF 19.00
49+
CHF 18.77
74+
CHF 18.54
99+
CHF 17.38
199+
CHF 17.15
249+
CHF 16.91
499+
CHF 16.68
999+
CHF 16.22
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 23mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 23mm |
| Dynamic load | 17200 N |
| Static load | 27000 N |
| Fatigue load limit Pu | 3400 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
