SKU: NA6907R-NTN

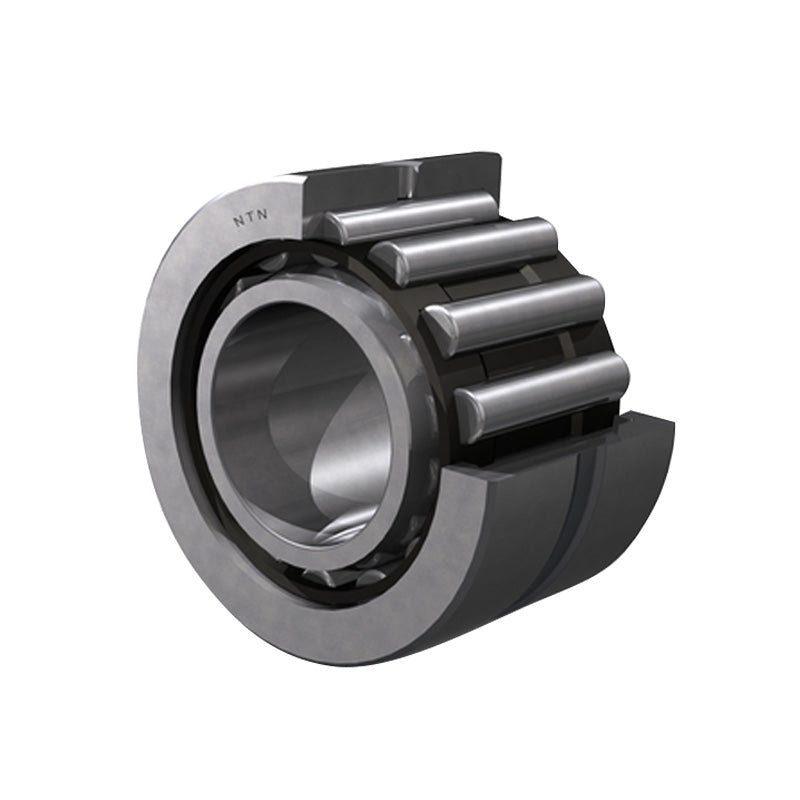

NTN NA6907R Machined Needle Roller Bearing with Shaft Sleeve 35x55x36mm

NTN NA6907R Machined Needle Roller Bearing with Shaft Sleeve 35x55x36mm
Regular price CHF 45.00 ex VAT
Regular price Sale price CHF 45.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 35.44
4+ CHF 33.45
9+ CHF 33.05
19+ CHF 32.65
49+ CHF 32.25
99+ CHF 31.86
499+ CHF 29.87
999+ CHF 29.47
1999+ CHF 29.07
2999+ CHF 28.67
4999+ CHF 27.87
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 35mm
D - Outside diameter 55mm
C - Width of bearing, drawn cup or outer ring 36mm
F - Under roller diameter 42mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 49 kN
C0r - Static load rating 86.5 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 9500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 39mm
Da max - Outer ring maximum shoulder diameter 51mm
ras max - Maximum shaft & housing fillet radius 0.6mm
