SKU: NA6912R-NTN

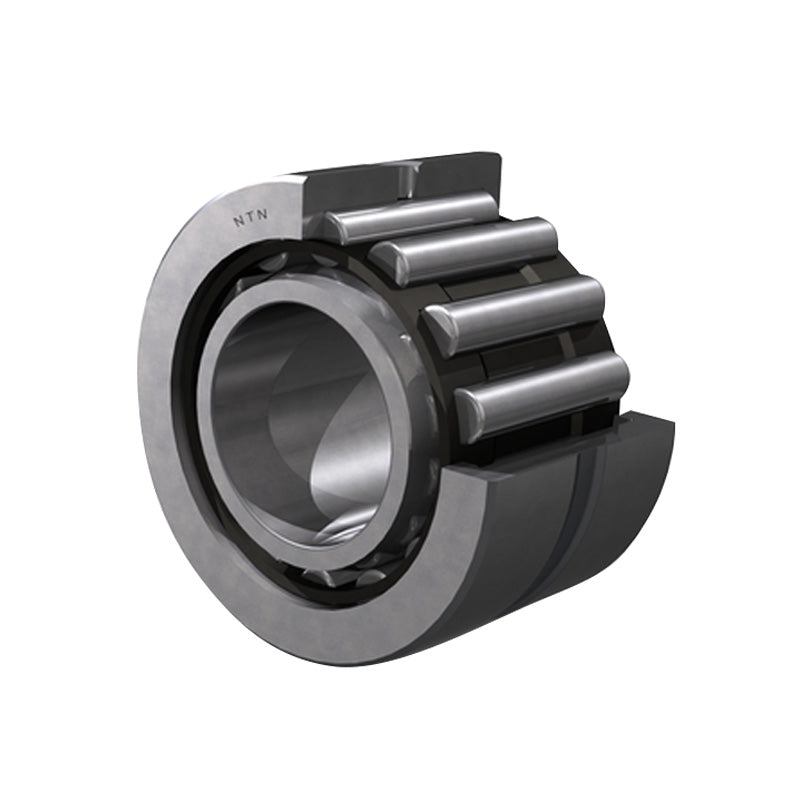

NTN NA6912R Machined Needle Roller Bearing with Shaft Sleeve 60x85x45mm - Allow 2-3 Days

NTN NA6912R Machined Needle Roller Bearing with Shaft Sleeve 60x85x45mm - Allow 2-3 Days
Regular price CHF 100.00 ex VAT
Regular price Sale price CHF 100.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 87.79
4+ CHF 84.25
9+ CHF 82.47
19+ CHF 79.81
49+ CHF 78.04
99+ CHF 73.60
499+ CHF 62.08
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 60mm
D - Outside diameter 85mm
C - Width of bearing, drawn cup or outer ring 45mm
F - Under roller diameter 68mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 95.5 kN
C0r - Static load rating 191 kN
N - Grease lubrication limit speed 4000 tr/min
N - Oil lubrication limit speed 6000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 65mm
Da max - Outer ring maximum shoulder diameter 80mm
ras max - Maximum shaft & housing fillet radius 1mm
