SKU: NA6919R-NTN

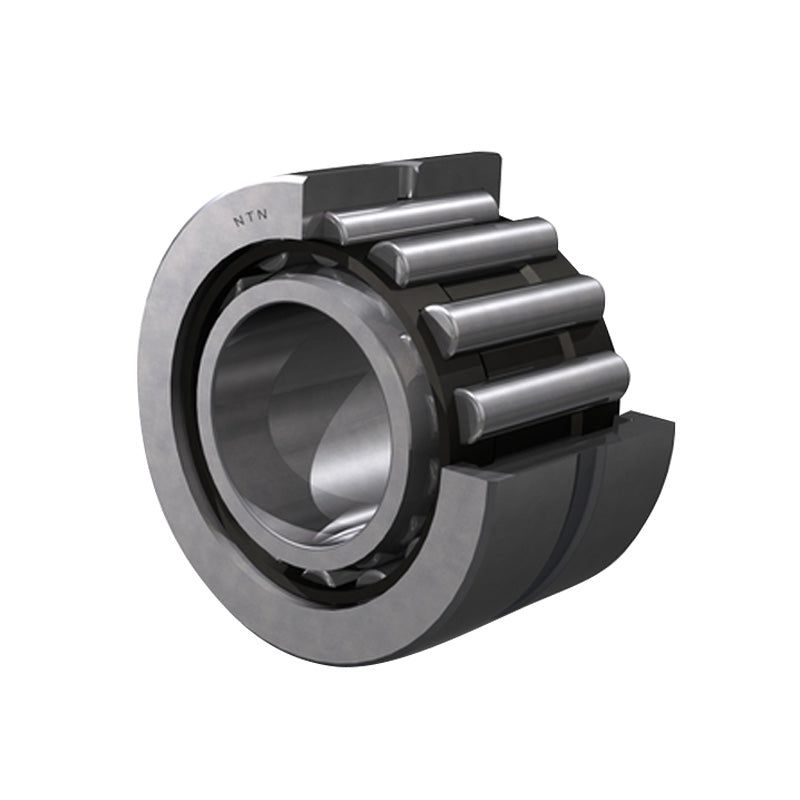

NTN NA6919R Machined Needle Roller Bearing with Shaft Sleeve 95x130x63mm - Allow 2-3 Days

NTN NA6919R Machined Needle Roller Bearing with Shaft Sleeve 95x130x63mm - Allow 2-3 Days
Regular price CHF 298.00 ex VAT
Regular price Sale price CHF 298.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 263.31
4+ CHF 252.67
9+ CHF 247.35
19+ CHF 239.37
49+ CHF 234.05
99+ CHF 220.76
499+ CHF 186.18
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 95mm
D - Outside diameter 130mm
C - Width of bearing, drawn cup or outer ring 63mm
F - Under roller diameter 110mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 177 kN
C0r - Static load rating 440 kN
N - Grease lubrication limit speed 2400 tr/min
N - Oil lubrication limit speed 3600 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 101.5mm
Da max - Outer ring maximum shoulder diameter 123.5mm
ras max - Maximum shaft & housing fillet radius 1mm
