SKU: NAO12x24x13-EU

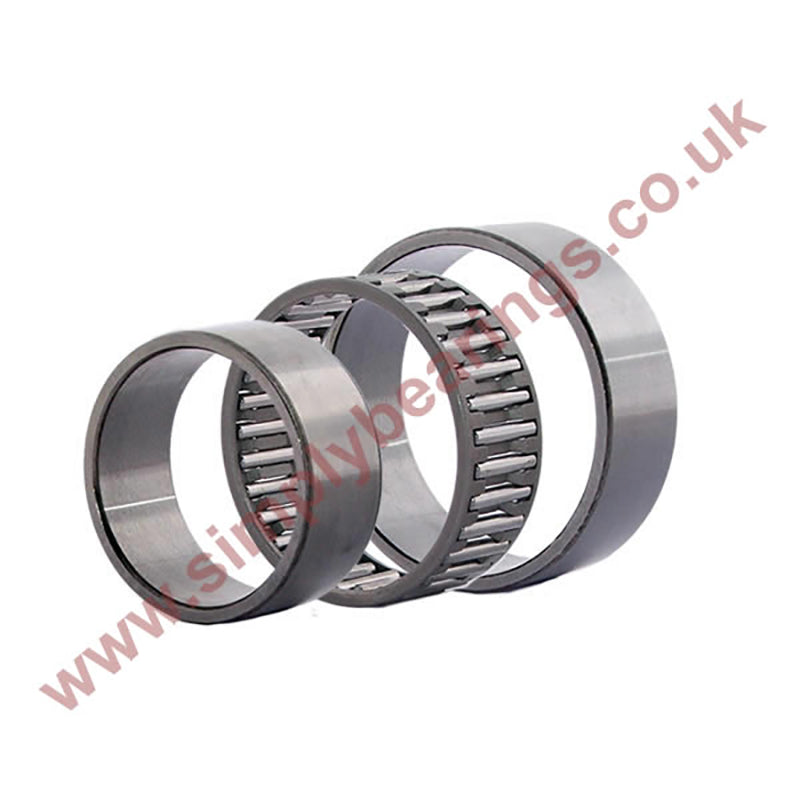

NAO12x24x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO12x24x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
10+
CHF 8.31
19+
CHF 7.84
29+
CHF 7.75
39+
CHF 7.66
49+
CHF 7.56
74+
CHF 7.47
99+
CHF 7.00
199+
CHF 6.91
249+
CHF 6.82
499+
CHF 6.72
999+
CHF 6.54
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 13mm |
| Dynamic load C | 8580 N |
| Static load Co | 12000 N |
| Fatigue load limit Pu | 1370 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| E | 20mm |
| F | 16mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 19.6mm |
| db | 15.7mm |
| Da | 20.3mm |
| Db | 16.4mm |
| ra max | 0.3mm |
| Weight | 30 g |
