SKU: NAO12x24x13-MB

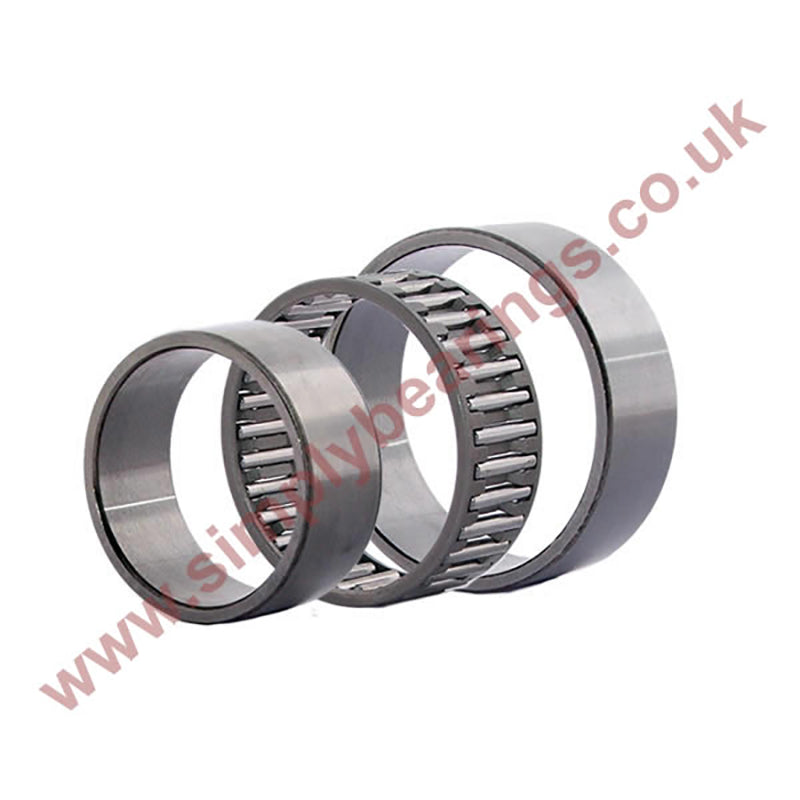

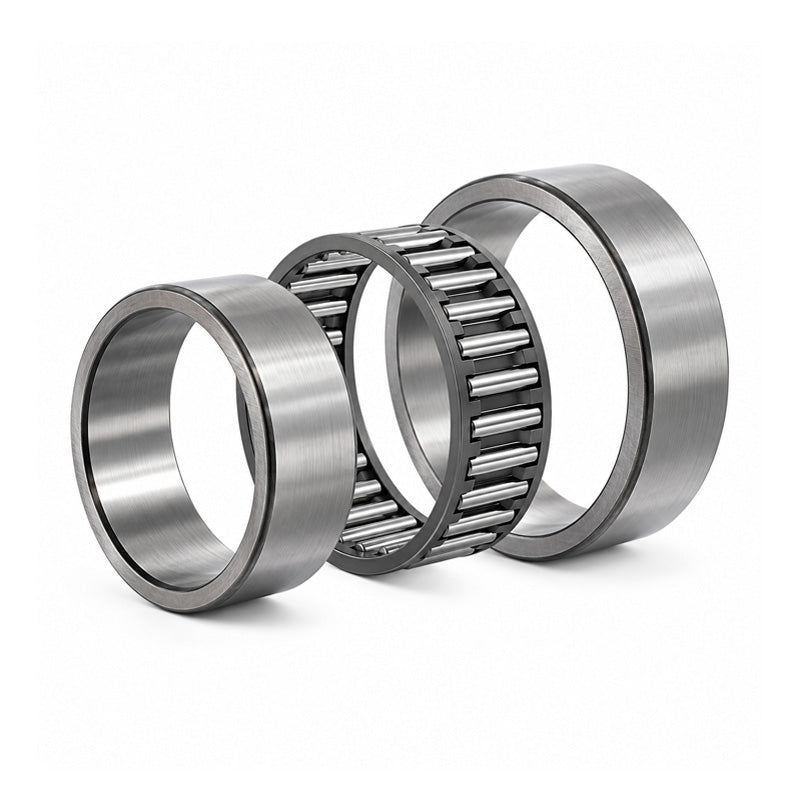

Major Brand NAO12x24x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO12x24x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
10+
CHF 13.68
19+
CHF 12.91
29+
CHF 12.76
39+
CHF 12.60
49+
CHF 12.45
74+
CHF 12.30
99+
CHF 11.53
199+
CHF 11.37
249+
CHF 11.22
499+
CHF 11.07
999+
CHF 10.76
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 13mm |
| Dynamic load | 8580 N |
| Static load | 12000 N |
| Fatigue load limit Pu | 1370 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| E | 20mm |
| F | 16mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 19.6mm |
| db | 15.7mm |
| Da | 20.3mm |
| Db | 16.4mm |
| ra max | 0.3mm |
| Weight | 30 g |
