SKU: NAO17x30x13-MB

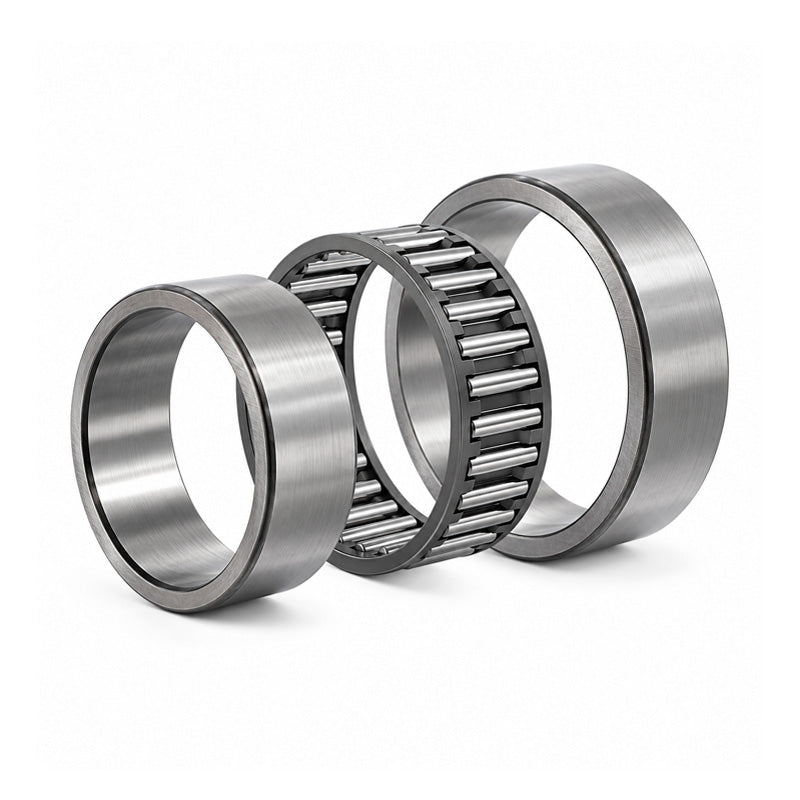

Major Brand NAO17x30x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO17x30x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
In stock
Price Break
10+
CHF 25.54
19+
CHF 24.10
29+
CHF 23.82
39+
CHF 23.53
49+
CHF 23.24
74+
CHF 22.96
99+
CHF 21.52
199+
CHF 21.23
249+
CHF 20.95
499+
CHF 20.66
999+
CHF 20.09
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 13mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 13mm |
| Dynamic load | 10100 N |
| Static load | 16300 N |
| Fatigue load limit Pu | 1860 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| E | 26mm |
| F | 22mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 25.6mm |
| db | 21.5mm |
| Da | 26.3mm |
| Db | 22.4mm |
| ra max | 0.3mm |
| Weight | 42 g |
