SKU: NAO17x35x16-MB

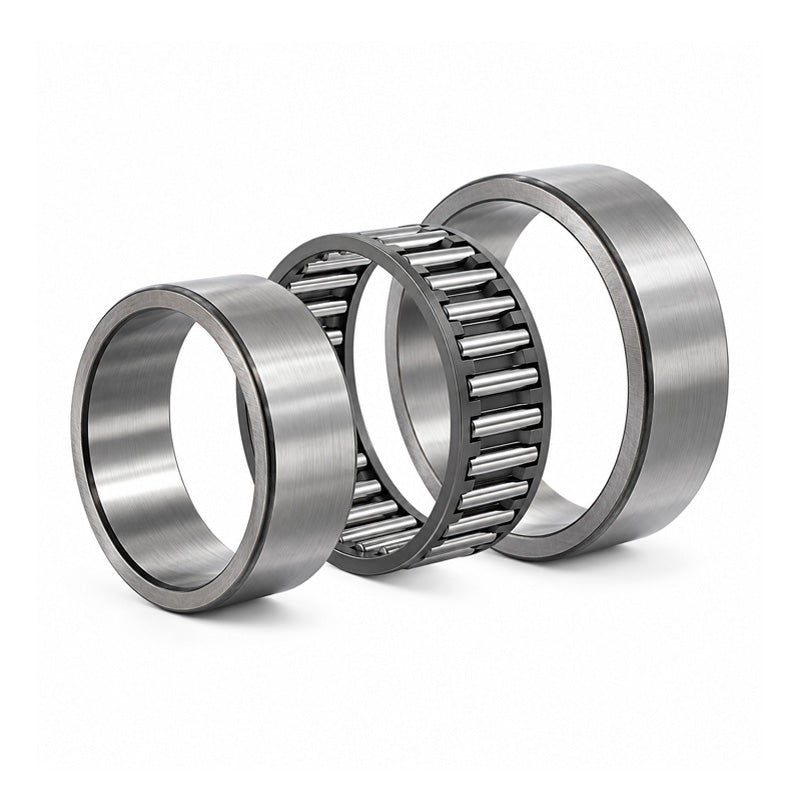

Major Brand NAO17x35x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO17x35x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 33.00
ex VAT
Regular price
Sale price
CHF 33.00
ex VAT
In stock
Price Break
10+
CHF 25.78
19+
CHF 24.33
29+
CHF 24.04
39+
CHF 23.75
49+
CHF 23.46
74+
CHF 23.17
99+
CHF 21.72
199+
CHF 21.43
249+
CHF 21.15
499+
CHF 20.86
999+
CHF 20.28
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 19400 N |
| Static load | 25500 N |
| Fatigue load limit Pu | 3050 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| E | 29mm |
| F | 22mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 28.4mm |
| db | 21.5mm |
| Da | 29.5mm |
| Db | 22.6mm |
| ra max | 0.3mm |
| Weight | 78 g |
