SKU: NAO20x37x16-MB

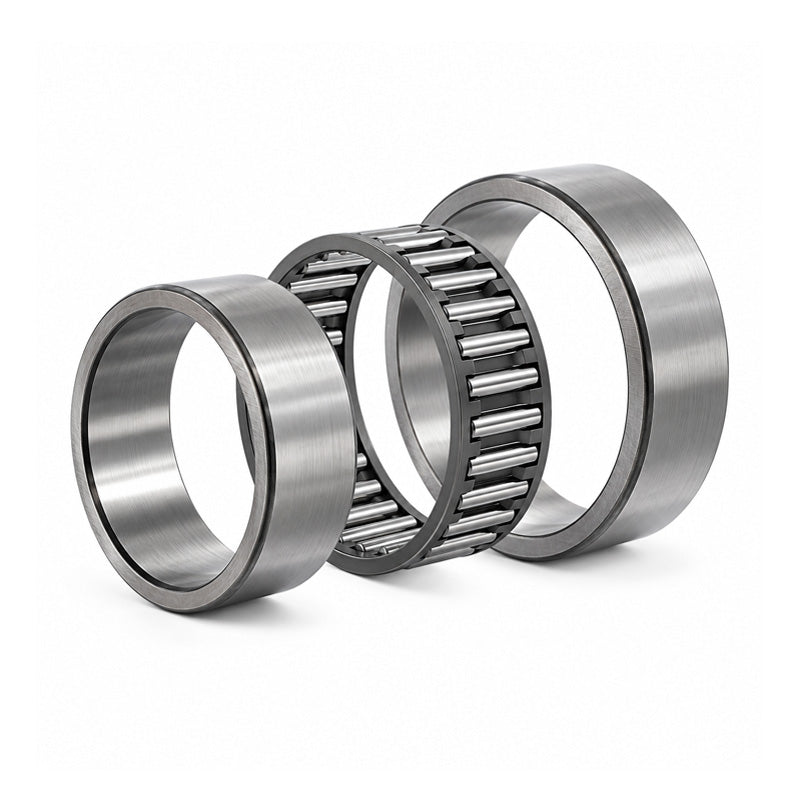

Major Brand NAO20x37x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO20x37x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 70.73
ex VAT
Regular price
Sale price
CHF 70.73
ex VAT
In stock
Price Break
10+
CHF 62.95
19+
CHF 59.41
29+
CHF 58.71
39+
CHF 58.00
49+
CHF 57.29
74+
CHF 56.58
99+
CHF 53.05
199+
CHF 52.34
249+
CHF 51.63
499+
CHF 50.93
999+
CHF 49.51
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 16mm |
| Dynamic load | 20100 N |
| Static load | 28000 N |
| Fatigue load limit Pu | 3350 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| E | 32mm |
| F | 25mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 31.4mm |
| db | 24.5mm |
| Da | 32.5mm |
| Db | 25.6mm |
| ra max | 0.3mm |
| Weight | 82 g |
