SKU: NAO25x42x16-MB

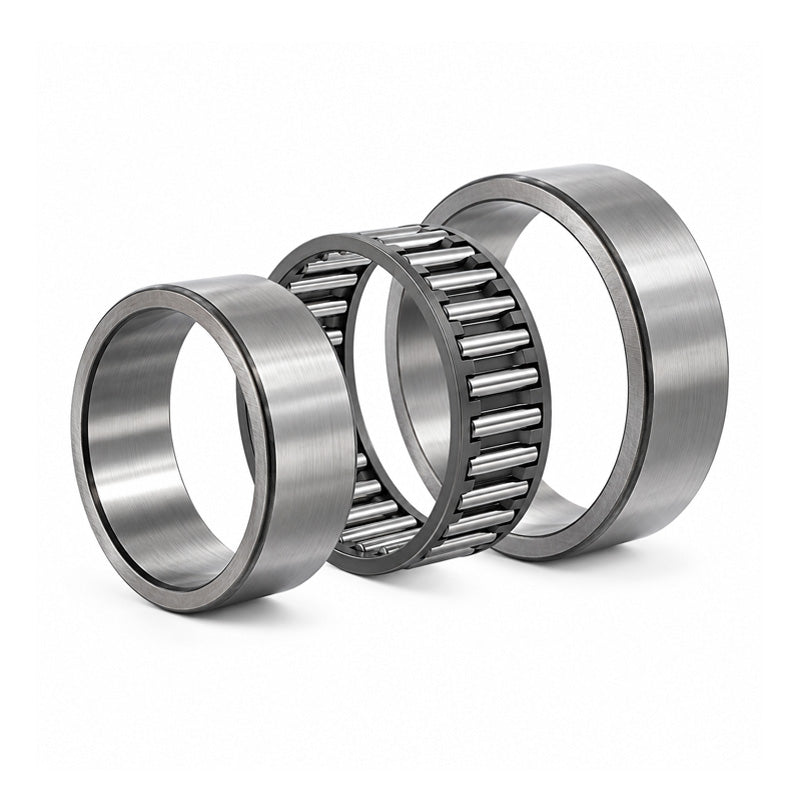

Major Brand NAO25x42x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO25x42x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 56.03
ex VAT
Regular price
Sale price
CHF 56.03
ex VAT
In stock
Price Break
10+
CHF 49.87
19+
CHF 47.07
29+
CHF 46.50
39+
CHF 45.94
49+
CHF 45.38
74+
CHF 44.82
99+
CHF 42.02
199+
CHF 41.46
249+
CHF 40.90
499+
CHF 40.34
999+
CHF 39.22
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 16mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 16mm |
| Dynamic load | 22000 N |
| Static load | 33500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| E | 37mm |
| F | 30mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 36.4mm |
| db | 29.5mm |
| Da | 37.5mm |
| Db | 30.6mm |
| ra max | 0.3mm |
| Weight | 86 g |
