SKU: NAO30x45x26-MB

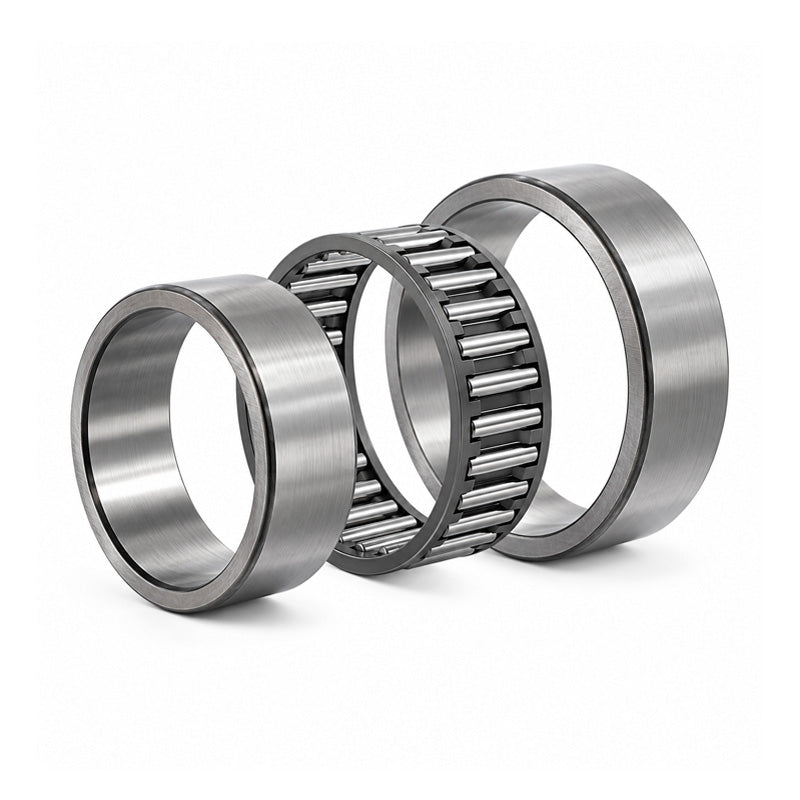

Major Brand NAO30x45x26 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO30x45x26 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 50.28
ex VAT
Regular price
Sale price
CHF 50.28
ex VAT
In stock
Price Break
10+
CHF 44.75
19+
CHF 42.24
29+
CHF 41.73
39+
CHF 41.23
49+
CHF 40.73
74+
CHF 40.22
99+
CHF 37.71
199+
CHF 37.21
249+
CHF 36.70
499+
CHF 36.20
999+
CHF 35.20
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 45mm
- Width:
- 26mm
Technical
Technical

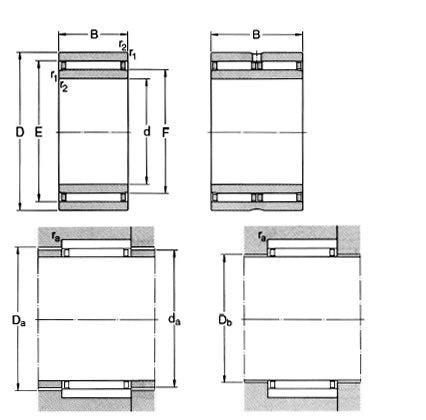

| d | 30mm |
|---|---|
| D | 45mm |
| B | 26mm |
| Dynamic load | 26400 N |
| Static load | 56000 N |
| Fatigue load limit Pu | 6550 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| E | 40mm |
| F | 35mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 39.4mm |
| db | 34.5mm |
| Da | 40.5mm |
| Db | 35.6mm |
| ra max | 0.3mm |
| Weight | 160 g |
