SKU: NAO6x17x10TN-MB

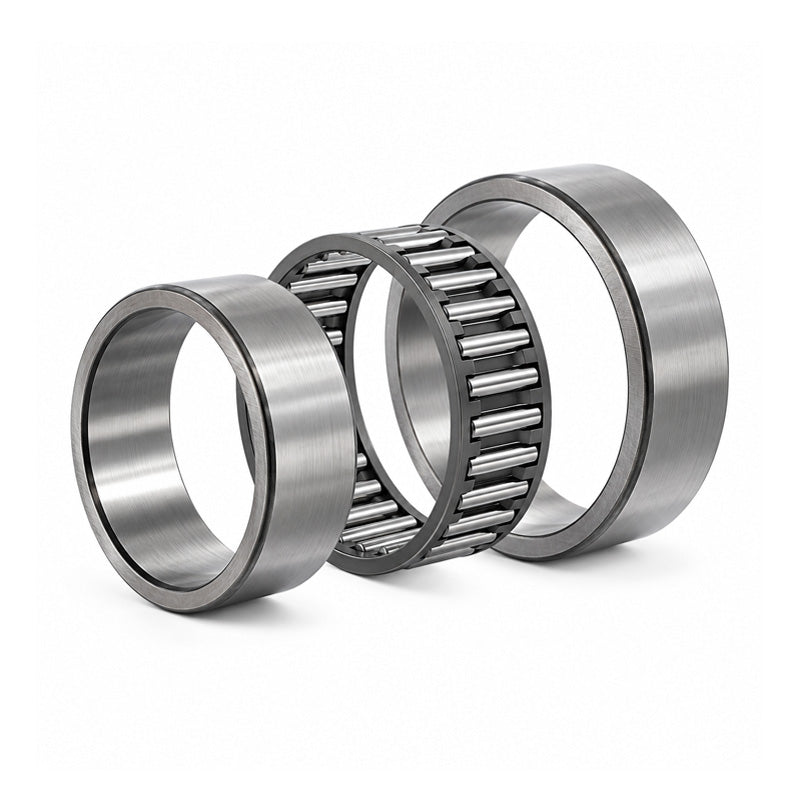

Major Brand NAO6x17x10TN Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO6x17x10TN Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
CHF 18.62
ex VAT
Regular price
Sale price
CHF 18.62
ex VAT
In stock
Price Break
10+
CHF 16.57
19+
CHF 15.64
29+
CHF 15.45
39+
CHF 15.27
49+
CHF 15.08
74+
CHF 14.90
99+
CHF 13.97
199+
CHF 13.78
249+
CHF 13.59
499+
CHF 13.41
999+
CHF 13.03
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 17mm
- Width:
- 10mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 17mm |
| B | 10mm |
| Dynamic load | 4570 N |
| Static load | 5700 N |
| Fatigue load limit Pu | 630 N |
| Speed in grease | 18000 rpm |
| Speed in oil | 28000 rpm |
| E | 13mm |
| F | 10mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 12.7mm |
| db | 9.7mm |
| Da | 13.3mm |
| Db | 10.3mm |
| ra max | 0.3mm |
| Weight | 14 g |
