SKU: NATR12-SKF

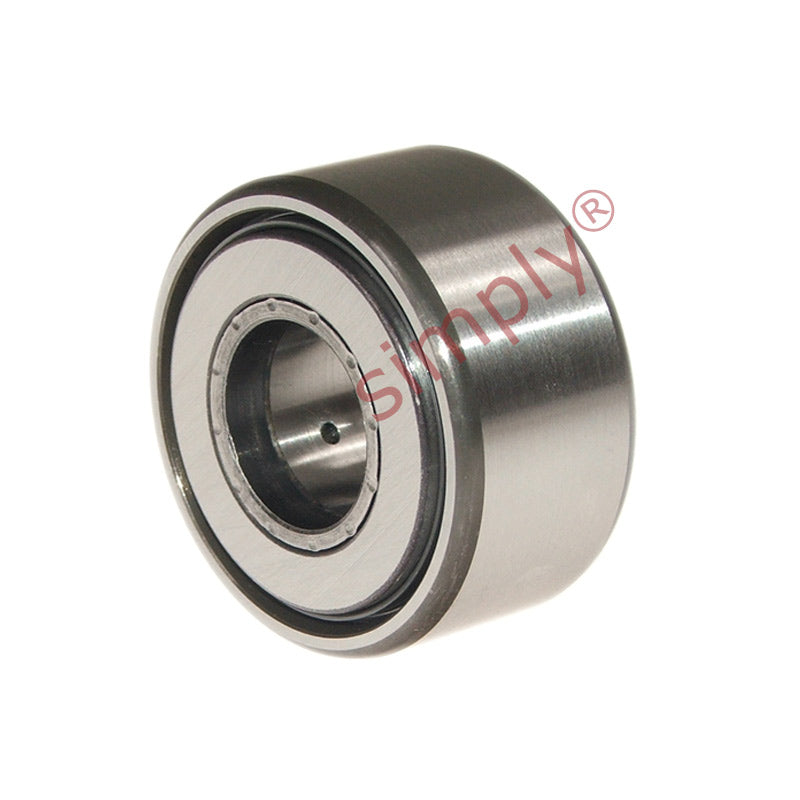

SKF NATR12 Support Roller With Axial Guidance 12x32x15mm
SKF NATR12 Support Roller With Axial Guidance 12x32x15mm
Regular price
CHF 86.95
ex VAT
Regular price
Sale price
CHF 86.95
ex VAT
In stock
Price Break
5+
CHF 86.08
10+
CHF 82.60
20+
CHF 80.86
50+
CHF 78.26
100+
CHF 76.52
500+
CHF 72.17
1000+
CHF 60.87
Couldn't load pickup availability
Description
Description
NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 14mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 15mm |
| C | 14mm |
| d1 | 25mm |
| r min | 0.6mm |
| r1 min | -mm |
| Speed rating | 4500 rpm |
| Basic dynamic load | 6600 N |
| Basic static load | 8500 N |
| Fatigue load limit Pu | 950 N |
| Max radial dynamic force | 7650 N |
| Max radial static force | 10800 N |
| Weight | 71 g |
