SKU: NATR17PP-MB

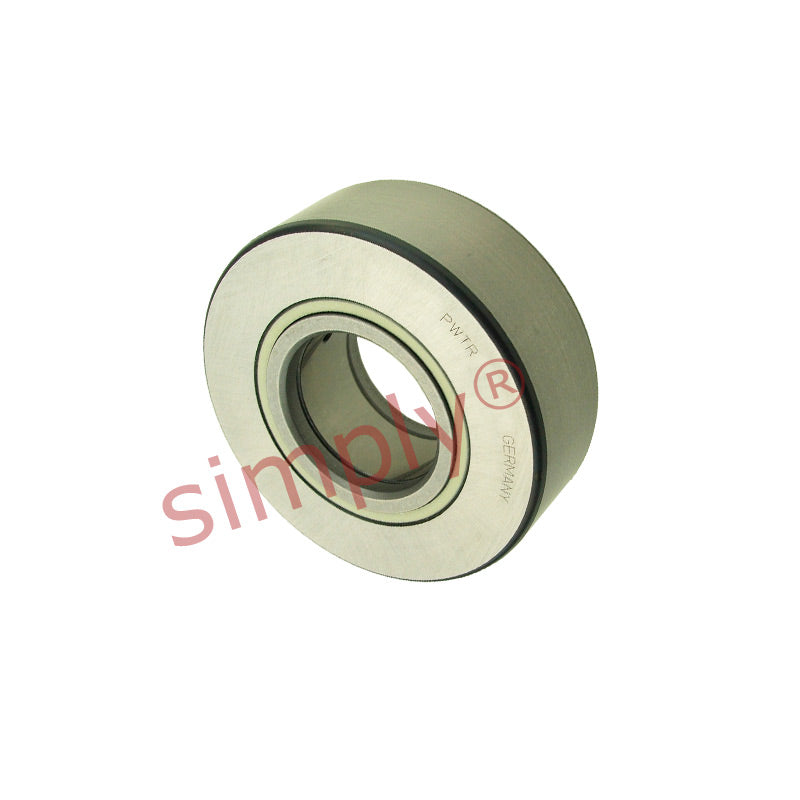

Major Brand NATR17PP Support Roller With Axial Guidance 17x40x21mm
Major Brand NATR17PP Support Roller With Axial Guidance 17x40x21mm
Regular price
CHF 59.00
ex VAT
Regular price
Sale price
CHF 59.00
ex VAT
In stock
Price Break
10+
CHF 46.47
19+
CHF 43.86
29+
CHF 43.34
39+
CHF 42.81
49+
CHF 42.29
74+
CHF 41.77
99+
CHF 39.16
199+
CHF 38.64
249+
CHF 38.11
499+
CHF 37.59
999+
CHF 36.55
Share this product
Description
Description
NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 20mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 21mm |
| C | 20mm |
| d1 | 31.5mm |
| r min | 1mm |
| r1 min | -mm |
| Speed rating | 2900 rpm |
| Basic dynamic load | 10500 N |
| Basic static load | 14600 N |
| Fatigue load limit Pu | 1730 N |
| Max radial dynamic force | 12500 N |
| Max radial static force | 18000 N |
| Weight | 140 g |
