SKU: NATR35LL/3AS-NTN

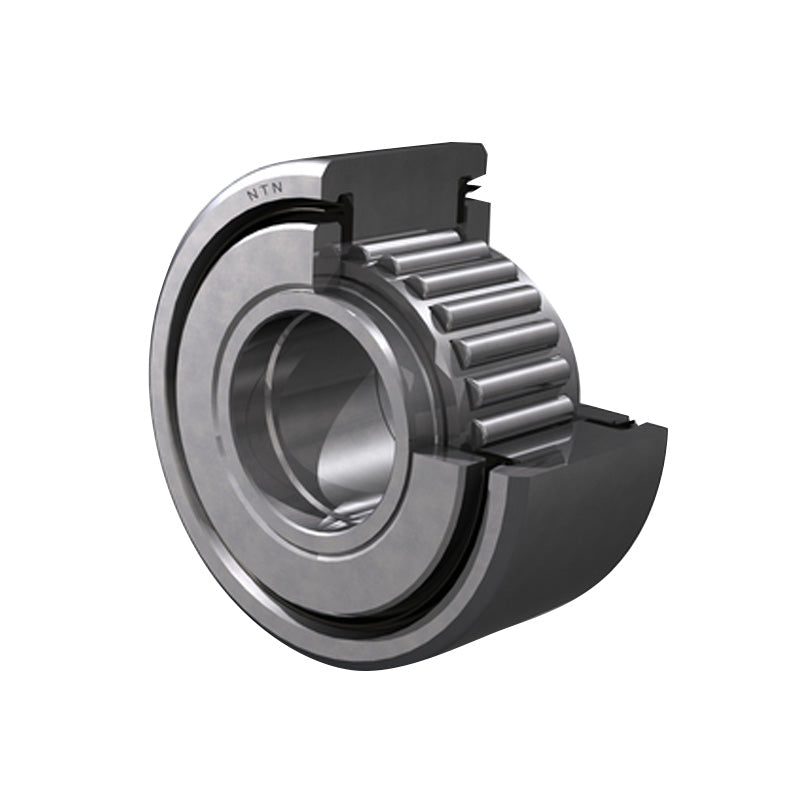

NTN NATR35LL/3AS Yoke Type Track Roller with Inner Race 35x72x28mm - Allow 2-3 Days
NTN NATR35LL/3AS Yoke Type Track Roller with Inner Race 35x72x28mm - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.79
4+
CHF 63.13
9+
CHF 61.80
19+
CHF 59.81
49+
CHF 58.48
99+
CHF 55.15
499+
CHF 46.52
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
NTN NATR Type Track Rollers: These track rollers are high-performance, double-shielded cam followers designed to deliver smooth, efficient motion and long-lasting reliability. Featuring a thick-walled outer ring and a cage-guided needle roller bearing assembly, these rollers offer excellent load-carrying capacity and precise rotational performance. Their robust construction ensures stability under heavy loads, while the protective seals keep out contaminants for extended bearing life. Perfect for use in conveyors, cam drives, linear guidance systems, and material handling equipment.
Benefits: High strength and stability, long service life, maintenance friendly
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 28mm
Technical
Technical
| d - Inside diameter | 35mm |
|---|---|
| D - Outside diameter | 72mm |
| C - Outer ring width | 28mm |
| F - Under roller diameter | 44.5mm |
| B - Bearing width | 29mm |
| e - Inlet diameter | 58mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 39 kN |
| C0r - Static load rating | 77 kN |
| Track load capacity | 8.05 kN |
| N - Grease lubrication limit speed | 3300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
