SKU: NATR45XLL/3AS-NTN

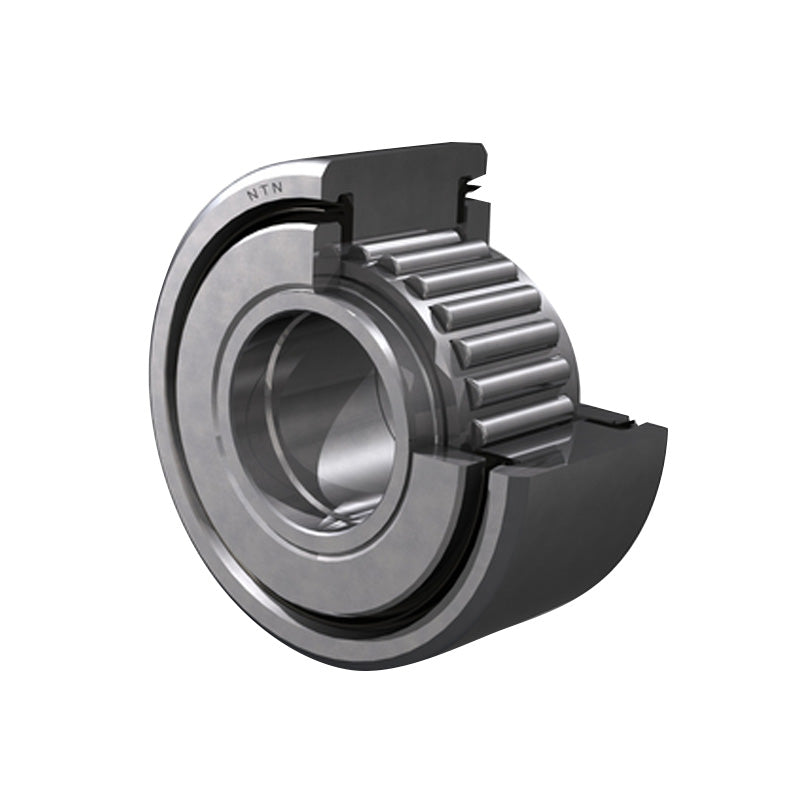

NTN NATR45XLL/3AS Yoke Type Track Roller with Inner Race 45x85x30mm - Allow 2-3 Days
NTN NATR45XLL/3AS Yoke Type Track Roller with Inner Race 45x85x30mm - Allow 2-3 Days
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
In stock
Price Break
3+
CHF 131.52
4+
CHF 126.21
9+
CHF 123.55
19+
CHF 119.57
49+
CHF 116.91
99+
CHF 110.27
499+
CHF 93.00
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
NTN NATR Type Track Rollers: These track rollers are high-performance, double-shielded cam followers designed to deliver smooth, efficient motion and long-lasting reliability. Featuring a thick-walled outer ring and a cage-guided needle roller bearing assembly, these rollers offer excellent load-carrying capacity and precise rotational performance. Their robust construction ensures stability under heavy loads, while the protective seals keep out contaminants for extended bearing life. Perfect for use in conveyors, cam drives, linear guidance systems, and material handling equipment.
Benefits: High strength and stability, long service life, maintenance friendly
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 30mm
Technical
Technical
| d - Inside diameter | 45mm |
|---|---|
| D - Outside diameter | 85mm |
| C - Outer ring width | 30mm |
| F - Under roller diameter | 55mm |
| B - Bearing width | 32mm |
| e - Inlet diameter | 71mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 51.5 kN |
| C0r - Static load rating | 100 kN |
| Track load capacity | 47 kN |
| N - Grease lubrication limit speed | 2700 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
