SKU: NATR6LL/3AS-NTN

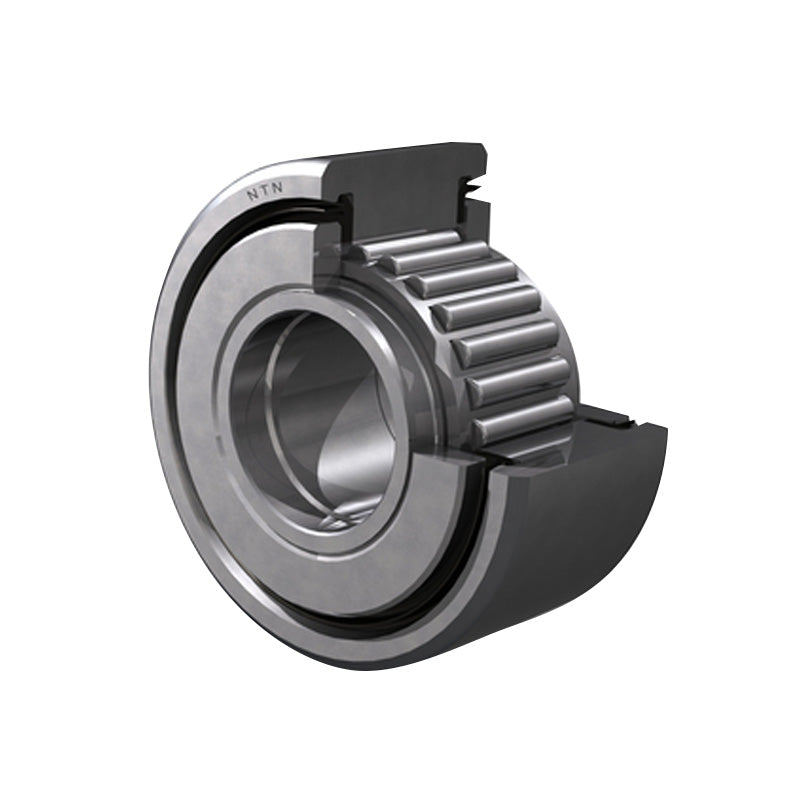

NTN NATR6LL/3AS Yoke Type Track Roller with Inner Race 6x19x11mm
NTN NATR6LL/3AS Yoke Type Track Roller with Inner Race 6x19x11mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
3+
CHF 13.55
4+
CHF 12.78
9+
CHF 12.63
19+
CHF 12.48
49+
CHF 12.33
99+
CHF 12.18
499+
CHF 11.42
999+
CHF 11.26
1999+
CHF 11.11
2999+
CHF 10.96
4999+
CHF 10.65
Share this product
Description
Description
NTN NATR Type Track Rollers: These track rollers are high-performance, double-shielded cam followers designed to deliver smooth, efficient motion and long-lasting reliability. Featuring a thick-walled outer ring and a cage-guided needle roller bearing assembly, these rollers offer excellent load-carrying capacity and precise rotational performance. Their robust construction ensures stability under heavy loads, while the protective seals keep out contaminants for extended bearing life. Perfect for use in conveyors, cam drives, linear guidance systems, and material handling equipment.
Benefits: High strength and stability, long service life, maintenance friendly
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 11mm
Technical
Technical
| d - Inside diameter | 6mm |
|---|---|
| D - Outside diameter | 19mm |
| C - Outer ring width | 11mm |
| F - Under roller diameter | 10mm |
| B - Bearing width | 12mm |
| e - Inlet diameter | 14mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 4.75 kN |
| C0r - Static load rating | 5.4 kN |
| Track load capacity | 1.38 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
