SKU: NATV15LL/3AS-NTN

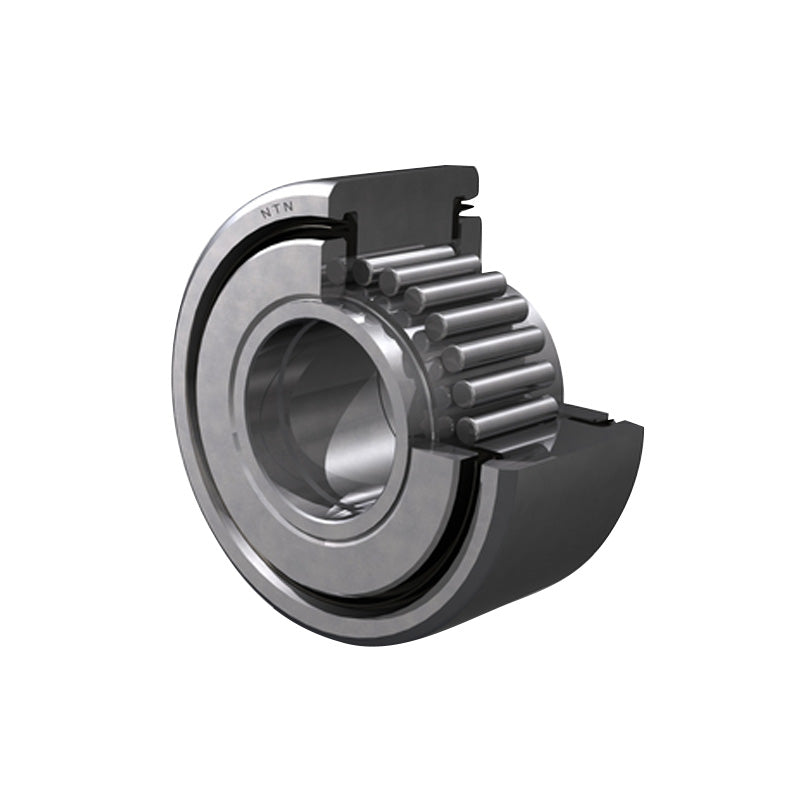

NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
3+
CHF 23.57
4+
CHF 22.24
9+
CHF 21.98
19+
CHF 21.71
49+
CHF 21.45
99+
CHF 21.18
499+
CHF 19.86
999+
CHF 19.60
1999+
CHF 19.33
2999+
CHF 19.07
4999+
CHF 18.54
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 18mm
Technical
Technical
| d - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 35mm |
| C - Outer ring width | 18mm |
| F - Under roller diameter | 20mm |
| B - Bearing width | 19mm |
| e - Inlet diameter | 27mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 18.4 kN |
| C0r - Static load rating | 38 kN |
| Track load capacity | 3.2 kN |
| N - Grease lubrication limit speed | 5000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
