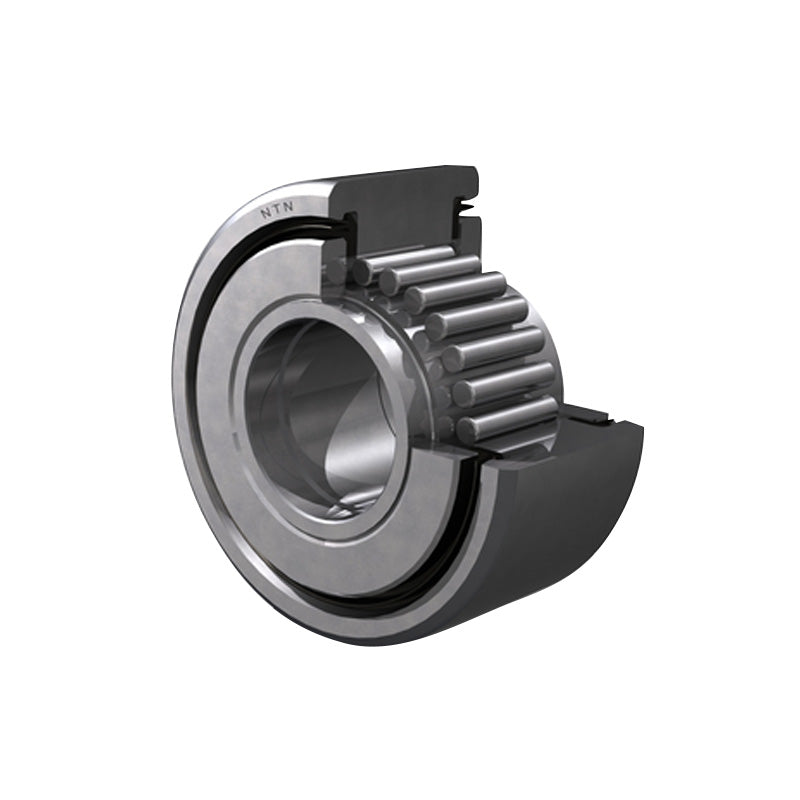

NTN NATV25/3AS Yoke Type Track Roller with Inner Race 25x52x24mm - Allow 2-3 Days
NTN NATV25/3AS Yoke Type Track Roller with Inner Race 25x52x24mm - Allow 2-3 Days
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
3+
CHF 35.09
4+
CHF 33.67
9+
CHF 32.96
19+
CHF 31.90
49+
CHF 31.19
99+
CHF 29.42
499+
CHF 24.81
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 24mm
Technical
Technical
| d - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 52mm |
| C - Outer ring width | 24mm |
| F - Under roller diameter | 30mm |
| B - Bearing width | 25mm |
| e - Inlet diameter | 42mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 31.5 kN |
| C0r - Static load rating | 73.5 kN |
| Track load capacity | 5.5 kN |
| N - Grease lubrication limit speed | 3300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
