SKU: NB0810MS-JUB

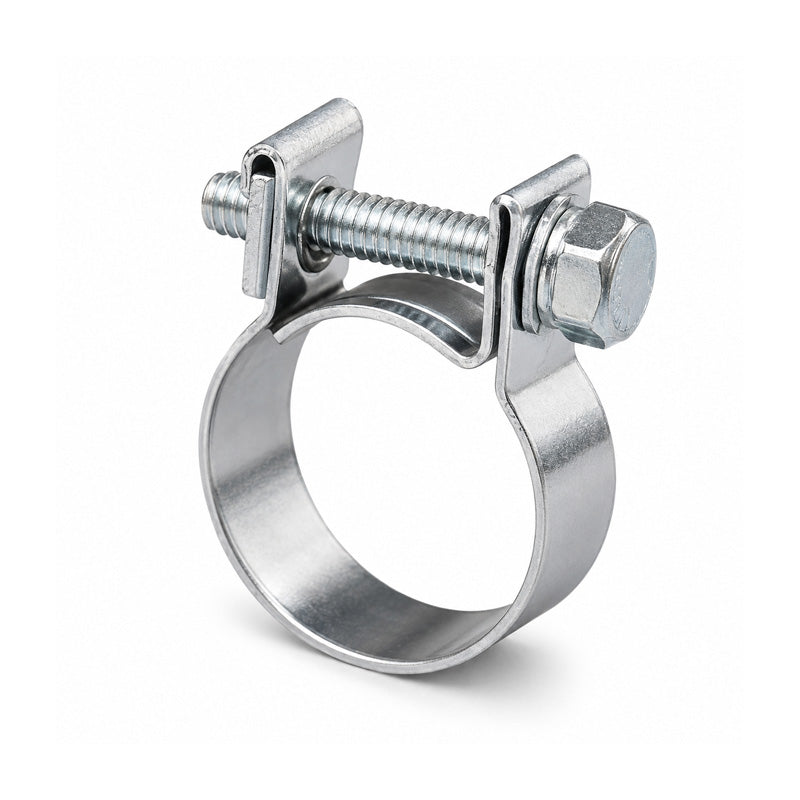

NB0810MS Zinc Plated Steel Jubilee Junior Clip Adjustment Range 8mm-10mm Band Width 9.1mm
NB0810MS Zinc Plated Steel Jubilee Junior Clip Adjustment Range 8mm-10mm Band Width 9.1mm
Regular price
CHF 1.07
ex VAT
Regular price
Sale price
CHF 1.07
ex VAT
In stock
Price Break
5+
CHF 0.75
10+
CHF 0.64
20+
CHF 0.59
50+
CHF 0.54
100+
CHF 0.43
500+
CHF 0.37
1000+
CHF 0.32
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Junior Clips: These small, nut and bolt clips are for use in low pressure applications such as fuel lines where little clamping force is needed.
Benefits: Ideal for low pressures.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 9.1mm
- Min Adjustment Range:
- 8mm
- Max Adjustment Range:
- 10mm
Technical
Technical

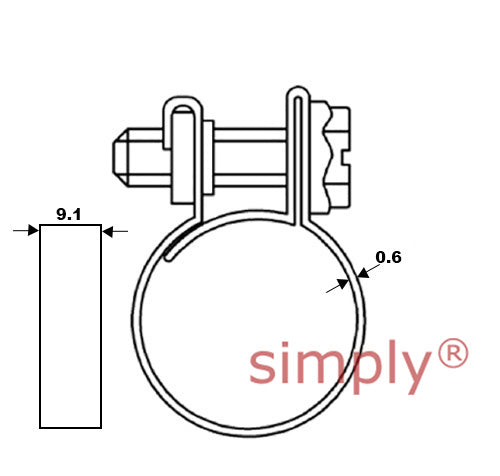

| Adjustment Range | 8mm - 10mm |
|---|---|
| Band Width (+/- 0.1) | 9.1mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 1.5Nm |
| Maximum Torque | 2Nm |
| Maximum Pressure | 75 Psi |
