SKU: NCF.2207.V.EU

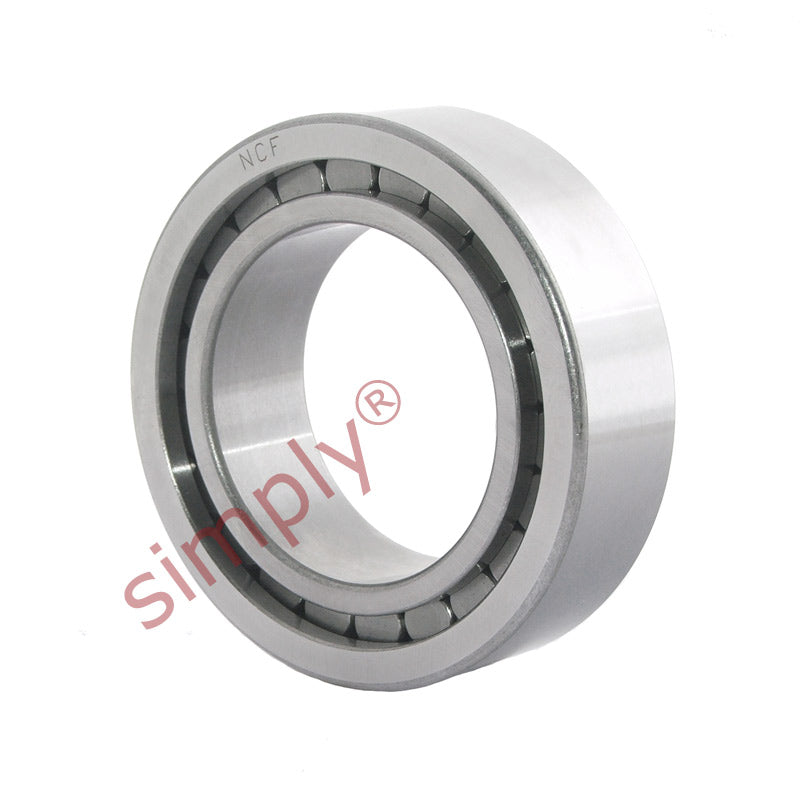

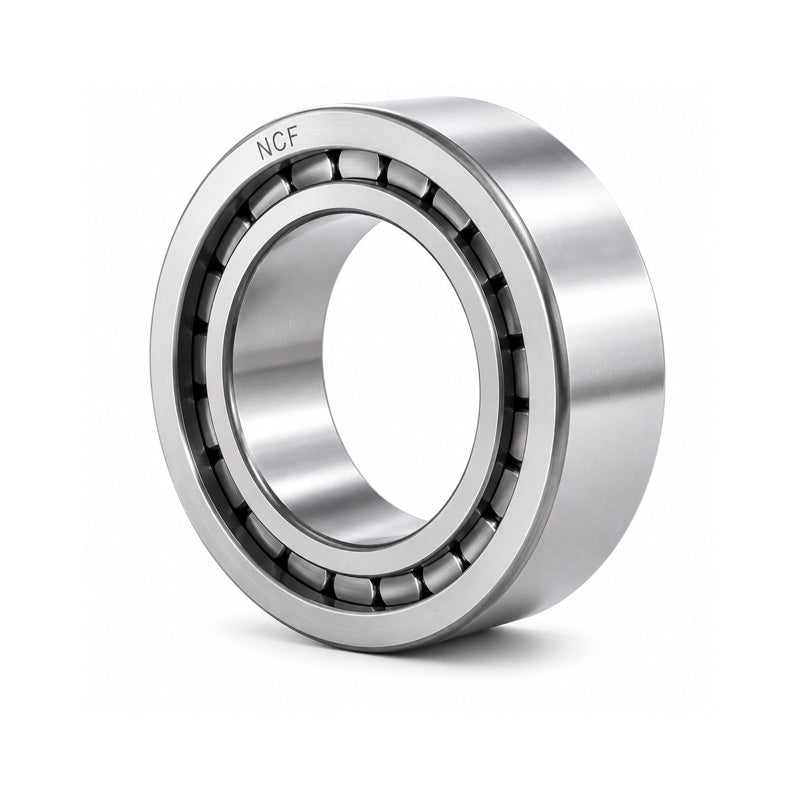

NCF2207V Budget Single Row Cylindrical Roller Bearing 35x72x23mm
NCF2207V Budget Single Row Cylindrical Roller Bearing 35x72x23mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
10+
CHF 14.10
19+
CHF 13.31
29+
CHF 13.15
39+
CHF 12.99
49+
CHF 12.83
74+
CHF 12.67
99+
CHF 11.88
199+
CHF 11.72
249+
CHF 11.56
499+
CHF 11.40
999+
CHF 11.09
Description
Description
|
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing Benefits:Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 23mm |
| Dynamic load C | 79 kN |
| Static load Co | 79 kN |
| Limiting speed | 6000 rpm |
| Weight | 0.44 kg |
