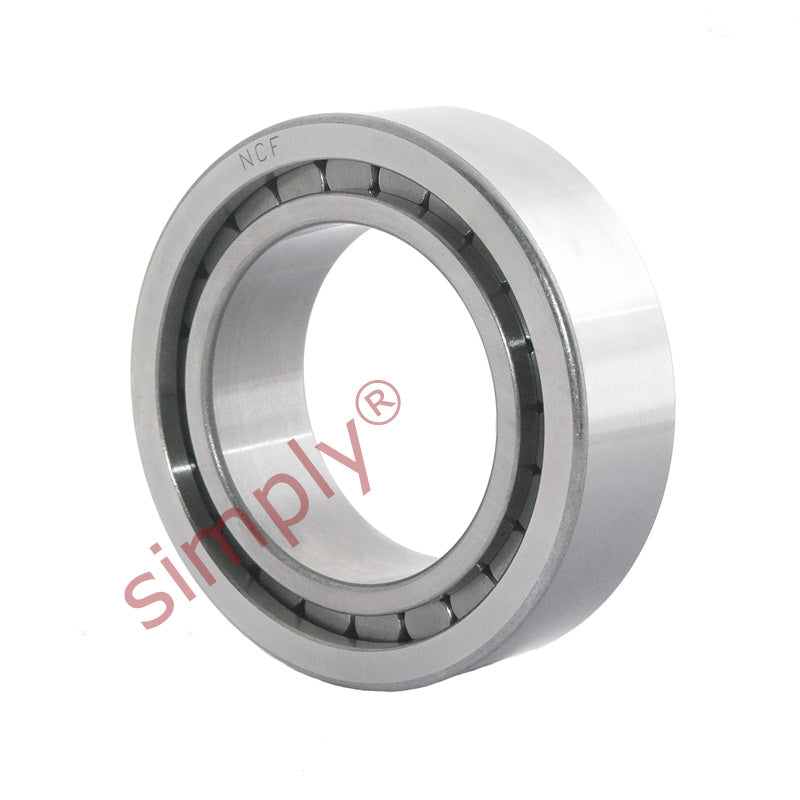

SKF NCF2916CV Single Row Cylindrical Roller Bearing 80x110x19mm
SKF NCF2916CV Single Row Cylindrical Roller Bearing 80x110x19mm
Regular price
CHF 359.62
ex VAT
Regular price
Sale price
CHF 359.62
ex VAT
In stock
Price Break
10+
CHF 320.06
19+
CHF 302.08
29+
CHF 298.48
39+
CHF 294.89
49+
CHF 291.29
74+
CHF 287.70
99+
CHF 269.72
199+
CHF 266.12
249+
CHF 262.52
499+
CHF 258.93
999+
CHF 251.73
Couldn't load pickup availability
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 110mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 110mm |
| B | 19mm |
| Dynamic load C | 80.9 kN |
| Static load Co | 132 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.55 kg |
| d1 | 90.5mm |
| D1 | 99mm |
| E/F | 102.7mm |
| r1r2 min | 1mm |
| r3r4 min | 1mm |
| S | 1mm |
| da min | 85mm |
| das | 88.6mm |
| Da max | 105mm |
| Db max | 105mm |
| ra max | 1mm |
| rb max | 1mm |
