SKU: NCF2920CV-SKF

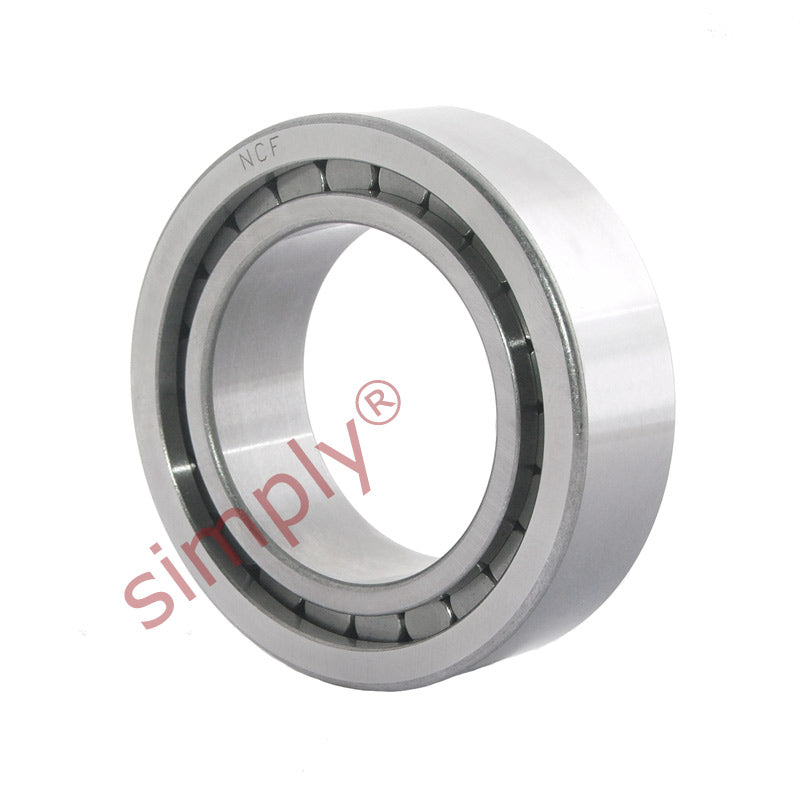

SKF NCF2920CV Single Row Cylindrical Roller Bearing 100x140x24mm
SKF NCF2920CV Single Row Cylindrical Roller Bearing 100x140x24mm
Regular price
CHF 558.61
ex VAT
Regular price
Sale price
CHF 558.61
ex VAT
In stock
Price Break
10+
CHF 497.16
19+
CHF 469.23
29+
CHF 463.65
39+
CHF 458.06
49+
CHF 452.47
74+
CHF 446.89
99+
CHF 418.96
199+
CHF 413.37
249+
CHF 407.79
499+
CHF 402.20
999+
CHF 391.03
Couldn't load pickup availability
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 140mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 140mm |
| B | 24mm |
| Dynamic load C | 128 kN |
| Static load Co | 200 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 2600 rpm |
| Weight | 1.14 kg |
| d1 | 114mm |
| D1 | 126mm |
| E/F | 130.6mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.5mm |
| da min | 106mm |
| das | 111mm |
| Da max | 134mm |
| Db max | 134mm |
| ra max | 1mm |
| rb max | 1mm |
