SKU: NCF2926CV-SKF

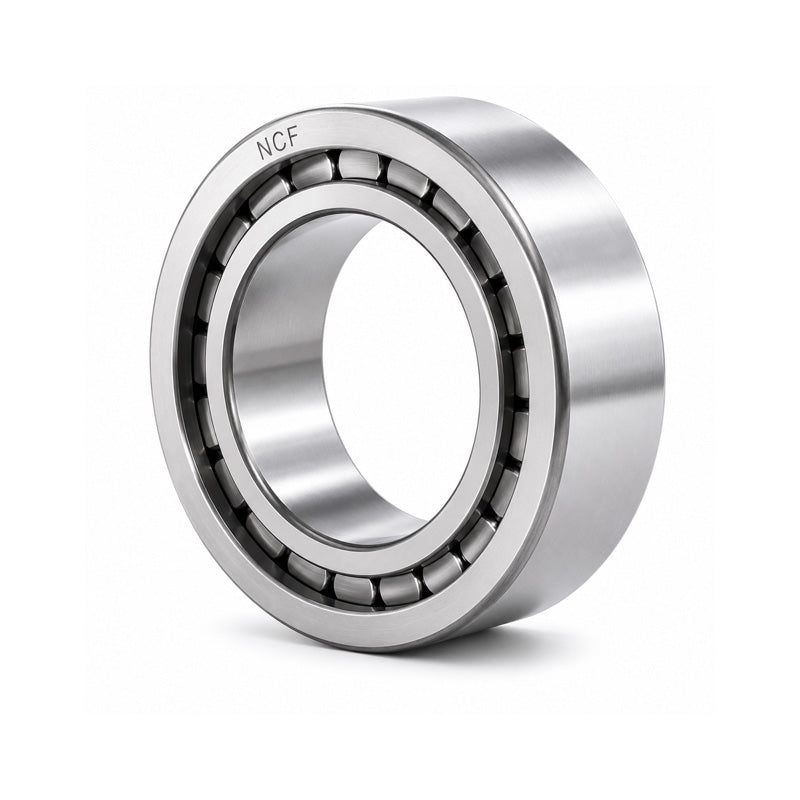

SKF NCF2926CV Single Row Cylindrical Roller Bearing 130x180x30mm
SKF NCF2926CV Single Row Cylindrical Roller Bearing 130x180x30mm
Regular price
CHF 826.00
ex VAT
Regular price
Sale price
CHF 826.00
ex VAT
In stock
Price Break
10+
CHF 658.00
19+
CHF 621.03
29+
CHF 613.64
39+
CHF 606.25
49+
CHF 598.85
74+
CHF 591.46
99+
CHF 554.49
199+
CHF 547.10
249+
CHF 539.71
499+
CHF 532.31
999+
CHF 517.53
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 180mm
- Width:
- 30mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 180mm |
| B | 30mm |
| Dynamic load C | 205 kN |
| Static load Co | 360 kN |
| Fatigue load limit Pu | 40.5 kN |
| Reference speed | 1600 rpm |
| Limiting speed | 2000 rpm |
| Weight | 2.33 kg |
| d1 | 147mm |
| D1 | 161mm |
| E/F | 167.1mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 2mm |
| da min | 137mm |
| das | 143mm |
| Da max | 173mm |
| Db max | 173mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
