SKU: NCF2930CV-SKF

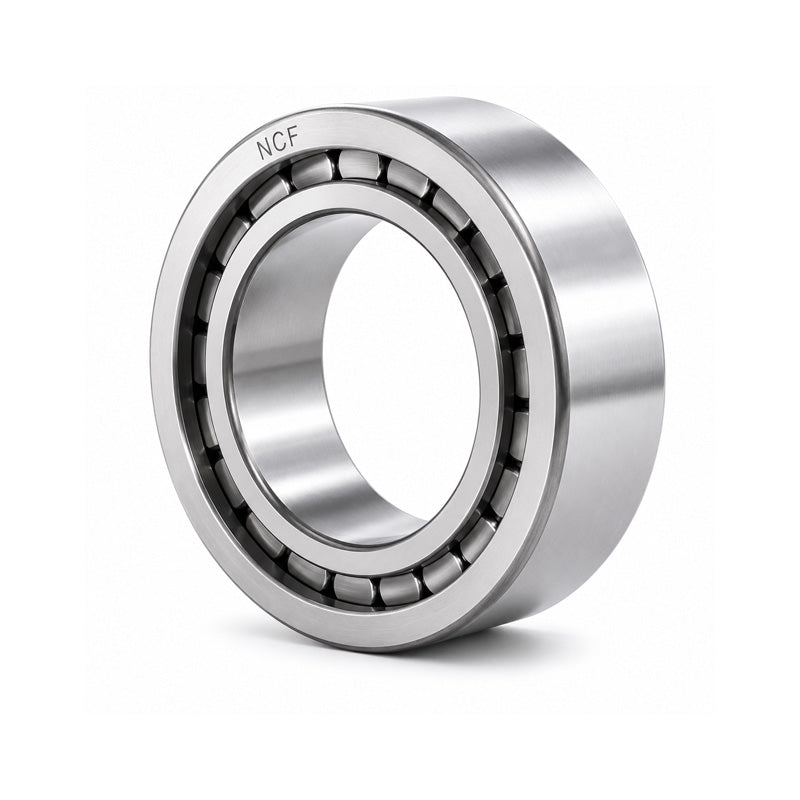

SKF NCF2930CV Single Row Cylindrical Roller Bearing 150x210x36mm
SKF NCF2930CV Single Row Cylindrical Roller Bearing 150x210x36mm
Regular price
CHF 1,551.00
ex VAT
Regular price
Sale price
CHF 1,551.00
ex VAT
In stock
Price Break
10+
CHF 1,235.91
19+
CHF 1,166.48
29+
CHF 1,152.59
39+
CHF 1,138.70
49+
CHF 1,124.82
74+
CHF 1,110.93
99+
CHF 1,041.50
199+
CHF 1,027.61
249+
CHF 1,013.72
499+
CHF 999.84
999+
CHF 972.06
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 210mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 210mm |
| B | 36mm |
| Dynamic load C | 292 kN |
| Static load Co | 490 kN |
| Fatigue load limit Pu | 55 kN |
| Reference speed | 1400 rpm |
| Limiting speed | 1700 rpm |
| Weight | 3.77 kg |
| d1 | 169mm |
| D1 | 189mm |
| E/F | 196.4mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 2.5mm |
| da min | 159mm |
| das | 166mm |
| Da max | 201mm |
| Db max | 201mm |
| ra max | 2mm |
| rb max | 2mm |
