SKU: NCF3006CV-SKF

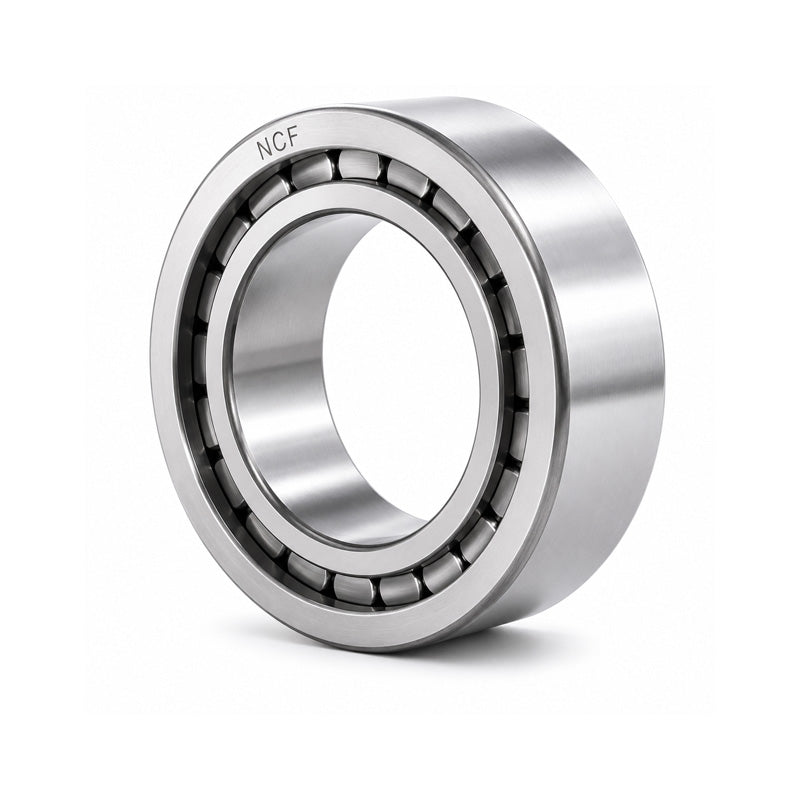

SKF NCF3006CV Single Row Cylindrical Roller Bearing 30x55x19mm
SKF NCF3006CV Single Row Cylindrical Roller Bearing 30x55x19mm
Regular price
CHF 81.00
ex VAT
Regular price
Sale price
CHF 81.00
ex VAT
In stock
Price Break
10+
CHF 63.96
19+
CHF 60.37
29+
CHF 59.65
39+
CHF 58.93
49+
CHF 58.21
74+
CHF 57.49
99+
CHF 53.90
199+
CHF 53.18
249+
CHF 52.46
499+
CHF 51.74
999+
CHF 50.31
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 19mm |
| Dynamic load C | 39.6 kN |
| Static load Co | 44 kN |
| Fatigue load limit Pu | 5 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.2 kg |
| d1 | 40mm |
| D1 | 45mm |
| E/F | 49.6mm |
| r1r2 min | 1mm |
| r3r4 min | 1mm |
| S | 2mm |
| da min | 35mm |
| das | 37.8mm |
| Da max | 50mm |
| Db max | 52mm |
| ra max | 1mm |
| rb max | 1mm |
