SKU: NF.203.C3.MB

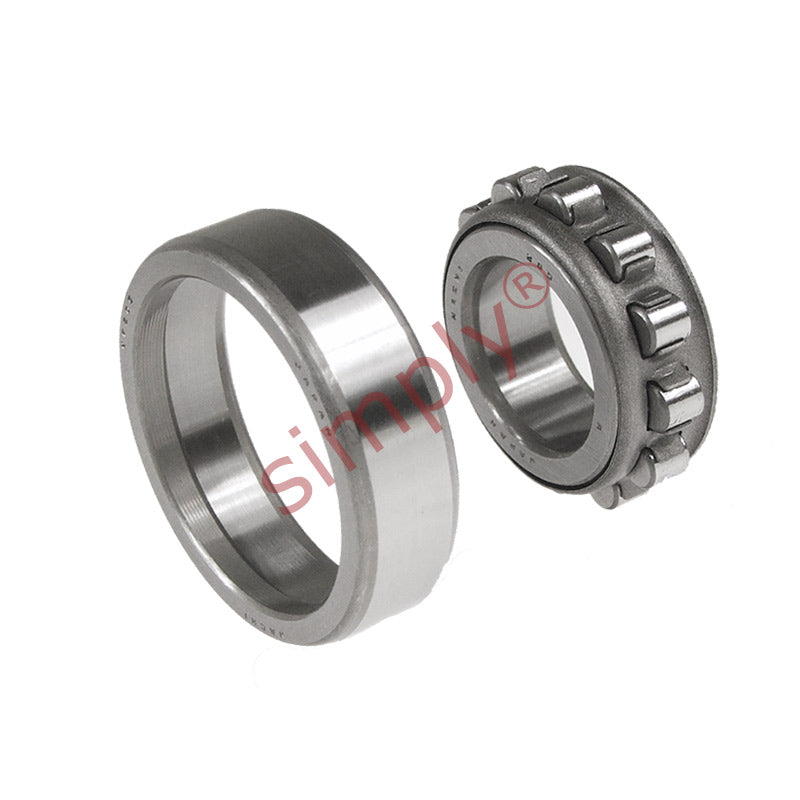

Major Brand NF203C3 Cylindrical Roller Bearing 17x40x12mm
Major Brand NF203C3 Cylindrical Roller Bearing 17x40x12mm
Regular price
CHF 32.00
ex VAT
Regular price
Sale price
CHF 32.00
ex VAT
In stock
Price Break
10+
CHF 24.78
19+
CHF 23.39
29+
CHF 23.11
39+
CHF 22.83
49+
CHF 22.56
74+
CHF 22.28
99+
CHF 20.88
199+
CHF 20.61
249+
CHF 20.33
499+
CHF 20.05
999+
CHF 19.49
Share this product
Description
Description
|
NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Ew | 33.9mm |
| Fw | 22.9mm |
| r1 | 0.6mm |
| 0.3mm | Dynamic Load |
| 12600N | Static Load |
| 7950N | Speed in Grease |
| 16000rpm | Speed in Oil |
| 19000rpm | da min |
| 22mm | db min |
| 19mm | db max |
| 22mm | dc |
| 24mm | Da max |
| 35mm | Db min |
| 34mm | Db max |
| 34mm | ra max |
| 0.6mm | ra1 max |
| 0.3mm | Weight |
| 0.082kg | N/A |
