SKU: NF.305.MB

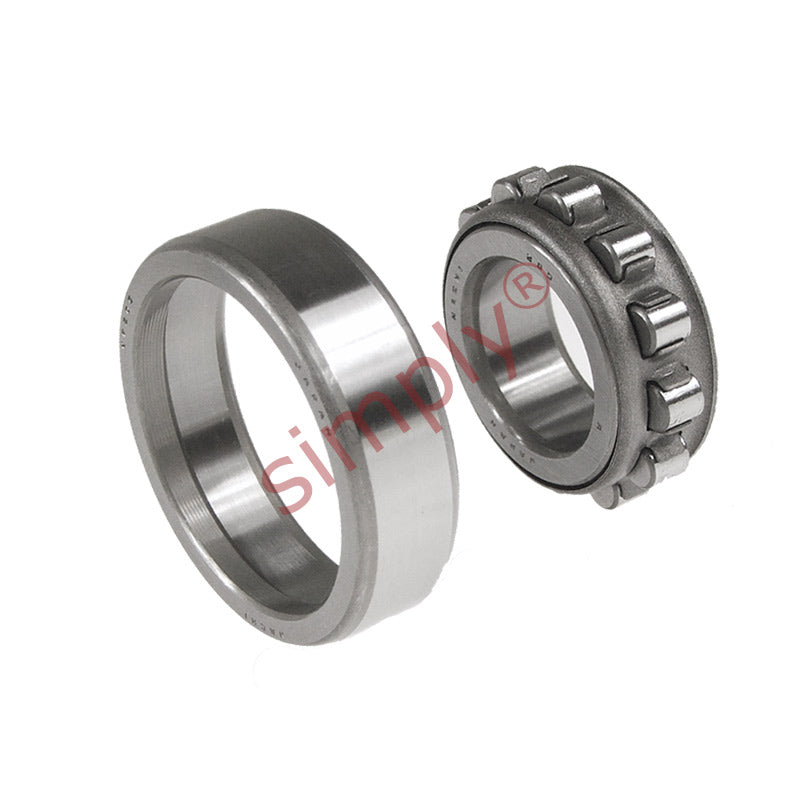

Major Brand NF305 Cylindrical Roller Bearing 25x62x17mm
Major Brand NF305 Cylindrical Roller Bearing 25x62x17mm
Regular price
CHF 52.00
ex VAT
Regular price
Sale price
CHF 52.00
ex VAT
In stock
Price Break
10+
CHF 41.18
19+
CHF 38.86
29+
CHF 38.40
39+
CHF 37.94
49+
CHF 37.48
74+
CHF 37.01
99+
CHF 34.70
199+
CHF 34.24
249+
CHF 33.78
499+
CHF 33.31
999+
CHF 32.39
Share this product
Description
Description
|
NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Ew | 53mm |
| Fw | 35mm |
| r1 | 1.1mm |
| 1.1mm | Dynamic Load |
| 29200N | Static Load |
| 25200N | Speed in Grease |
| 9500rpm | Speed in Oil |
| 12000rpm | da min |
| 32mm | db min |
| 32mm | db max |
| 33mm | dc |
| 37mm | Da max |
| 55mm | Db min |
| 55mm | Db max |
| 55mm | ra max |
| 1mm | ra1 max |
| 1mm | Weight |
| 0.238kg | N/A |
