SKU: NJ212ECP-SKF

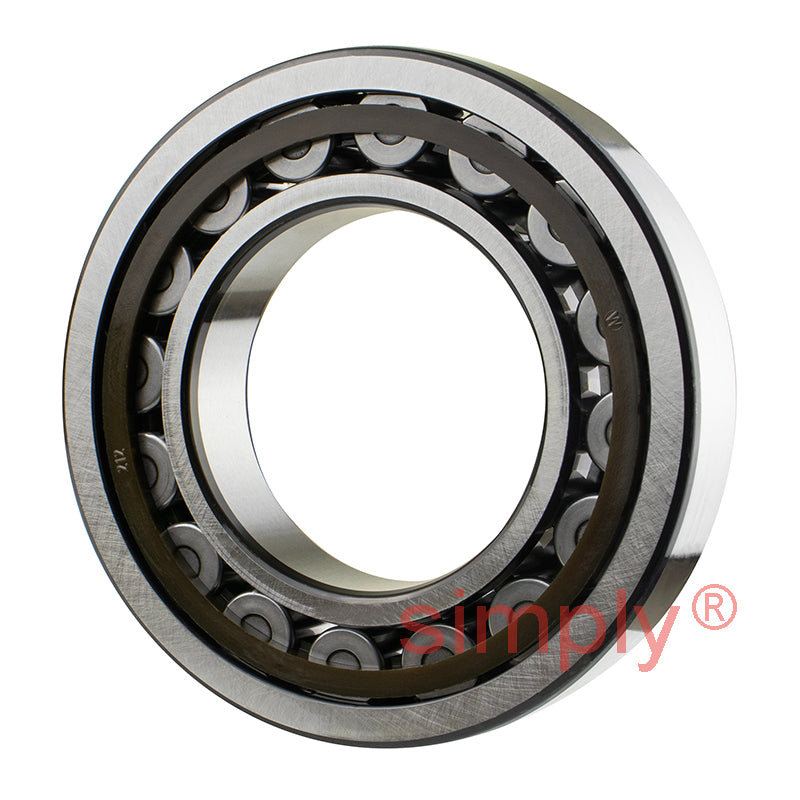

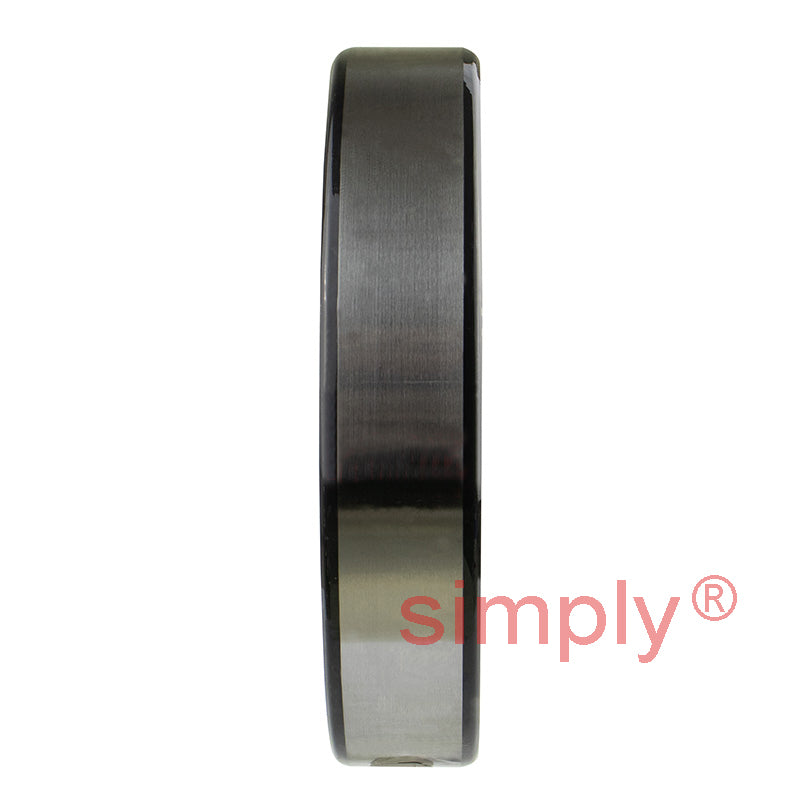

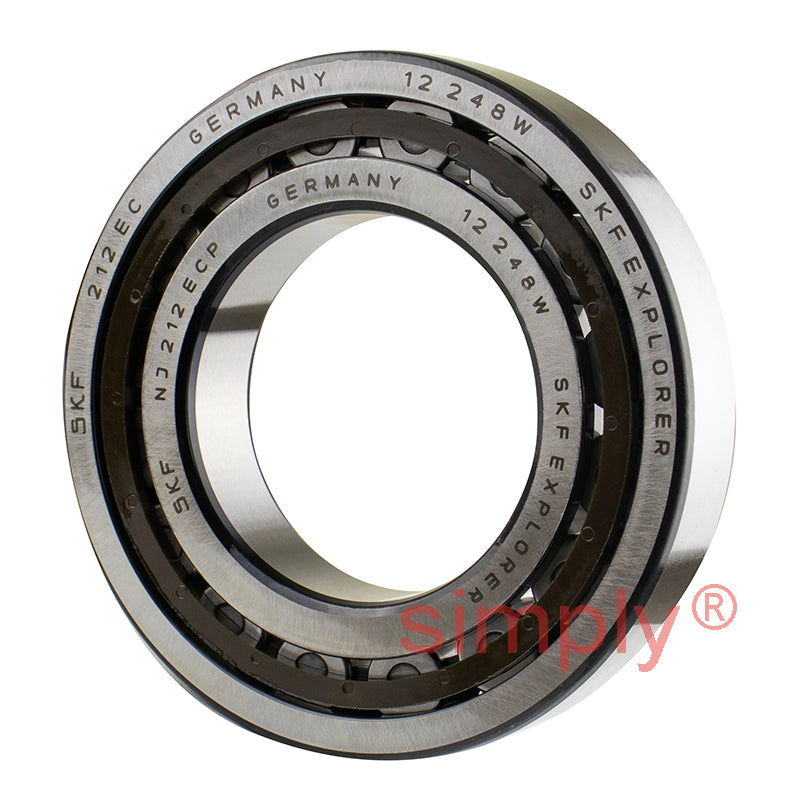

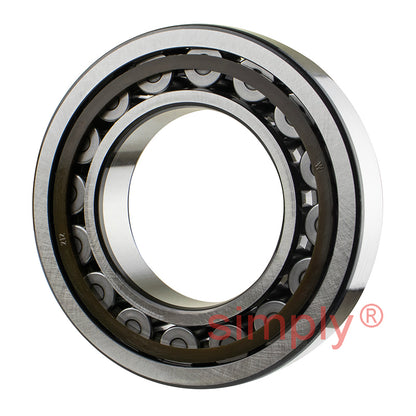

SKF NJ212ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 60x110x22mm
SKF NJ212ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 60x110x22mm
Regular price
CHF 84.00
ex VAT
Regular price
Sale price
CHF 84.00
ex VAT
In stock
Price Break
10+
CHF 66.32
19+
CHF 62.60
29+
CHF 61.85
39+
CHF 61.11
49+
CHF 60.36
74+
CHF 59.62
99+
CHF 55.89
199+
CHF 55.15
249+
CHF 54.40
499+
CHF 53.66
999+
CHF 52.17
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 108 kN |
| Static load Co | 102 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.83 kg |
| Alt cage | J.M.ML |
| d1 | 77.5mm |
| D1 | 95.7mm |
| F,E | 72mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.4mm |
| da min | 69mm |
| da max | 70mm |
| db | 80mm |
| Da max | 101mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ212EC |
| Angle Ring Weight | 0.1 kg |
| B1 | 6mm |
| B2 | 10mm |
