SKU: NJ213ECP-SKF

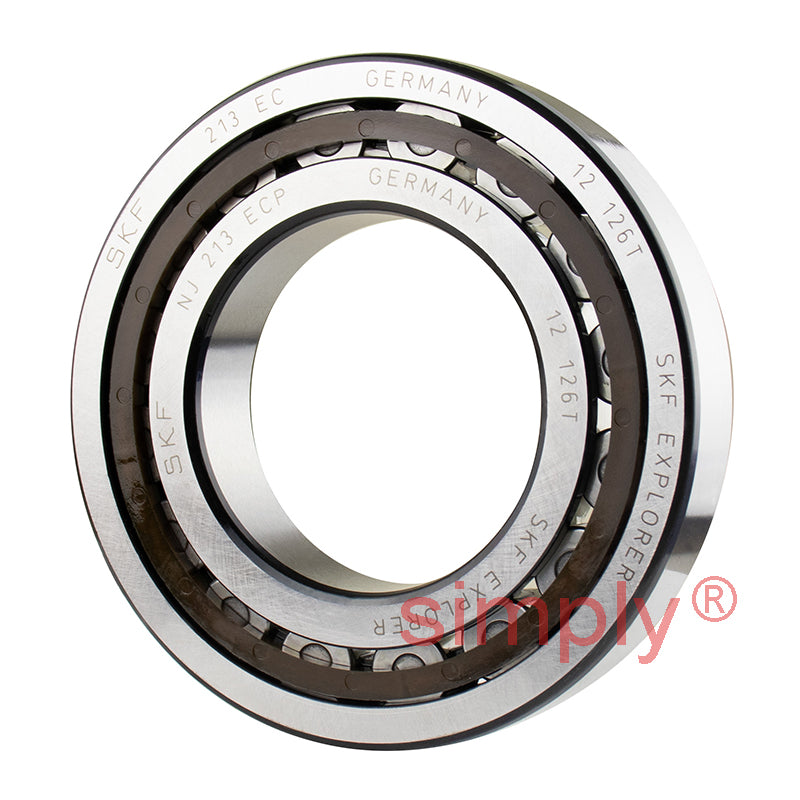

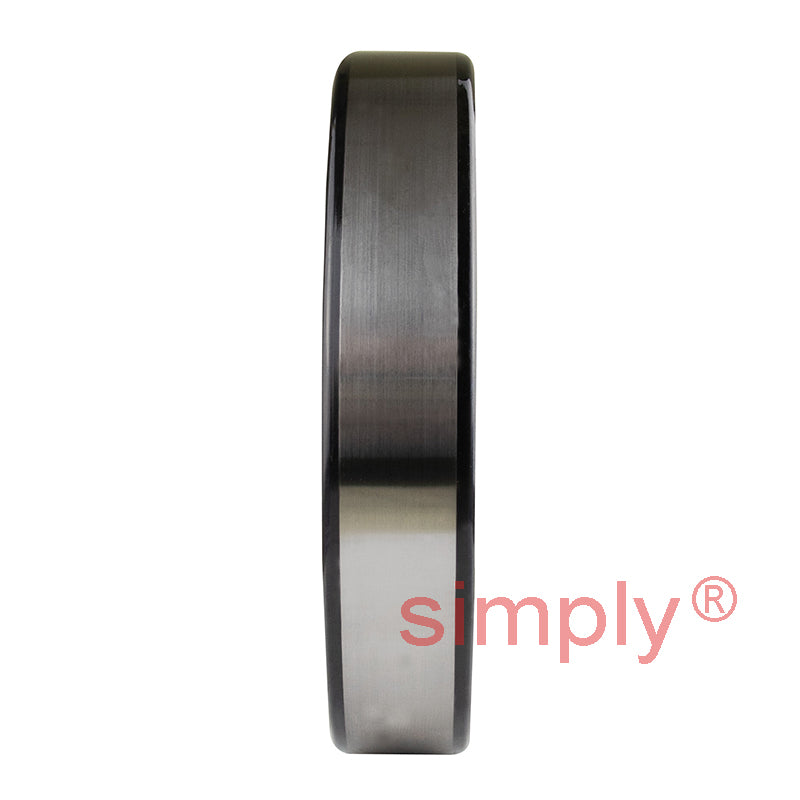

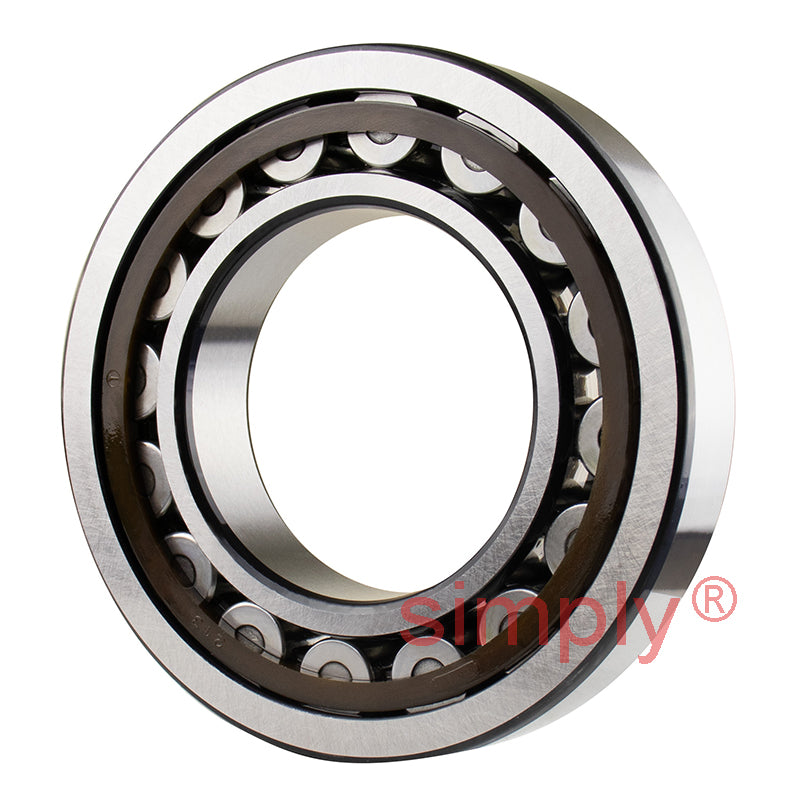

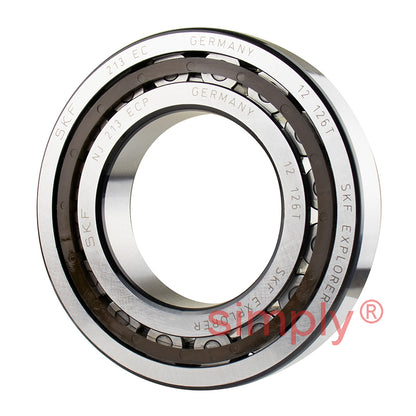

SKF NJ213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x23mm
SKF NJ213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x23mm
Regular price
CHF 94.00
ex VAT
Regular price
Sale price
CHF 94.00
ex VAT
In stock
Price Break
10+
CHF 74.19
19+
CHF 70.02
29+
CHF 69.19
39+
CHF 68.36
49+
CHF 67.52
74+
CHF 66.69
99+
CHF 62.52
199+
CHF 61.69
249+
CHF 60.85
499+
CHF 60.02
999+
CHF 58.35
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 122 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.07 kg |
| Alt cage | J.M.ML |
| d1 | 84.4mm |
| D1 | 104mm |
| F,E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.4mm |
| da min | 74mm |
| da max | 76mm |
| db | 87mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ213EC |
| Angle Ring Weight | 0.12 kg |
| B1 | 6mm |
| B2 | 10mm |
