SKU: NJ215-CDX

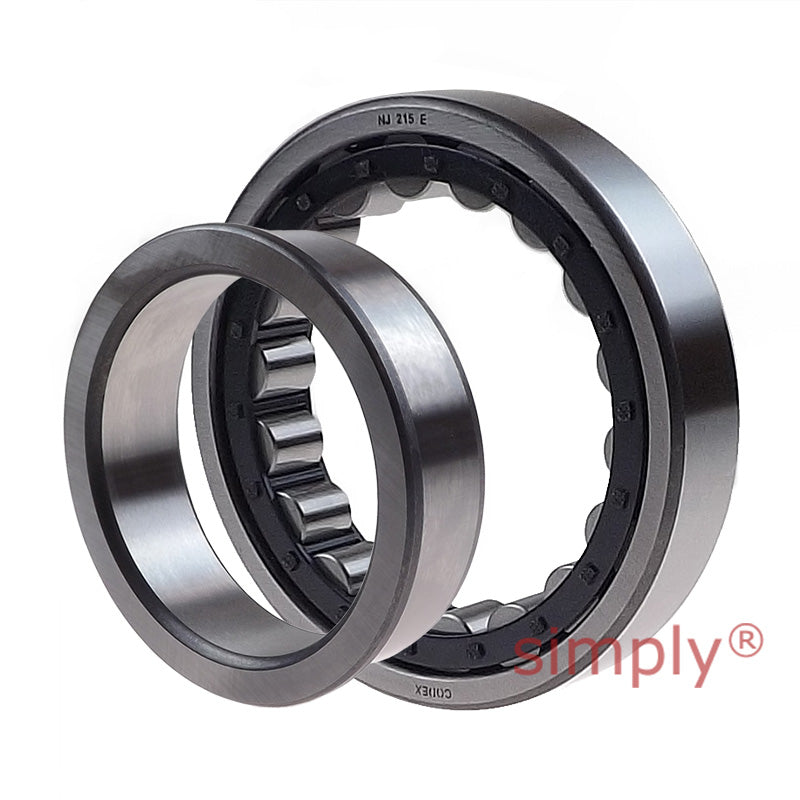

Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm
Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm
Regular price
CHF 112.55
ex VAT
Regular price
Sale price
CHF 112.55
ex VAT
In stock
Price Break
10+
CHF 100.17
19+
CHF 94.54
29+
CHF 93.42
39+
CHF 92.29
49+
CHF 91.17
74+
CHF 90.04
99+
CHF 84.41
199+
CHF 83.29
249+
CHF 82.16
499+
CHF 81.04
999+
CHF 78.79
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load C | 150 kN |
| Static load Co | 156 kN |
| Fatigue load limit Pu | 20.4 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.3 kg |
| Cage options | J.M.ML |
| d1 | 94.3mm |
| D1 | 114mm |
| F, E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.2mm |
| da min | 84mm |
| da max | 86mm |
| db min | 97mm |
| Da max | 121mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ215EC |
| Angle ring weight | 0.16kg |
| B1 | 7mm |
| B2 | 11mm |
