SKU: NJ216ECP-SKF

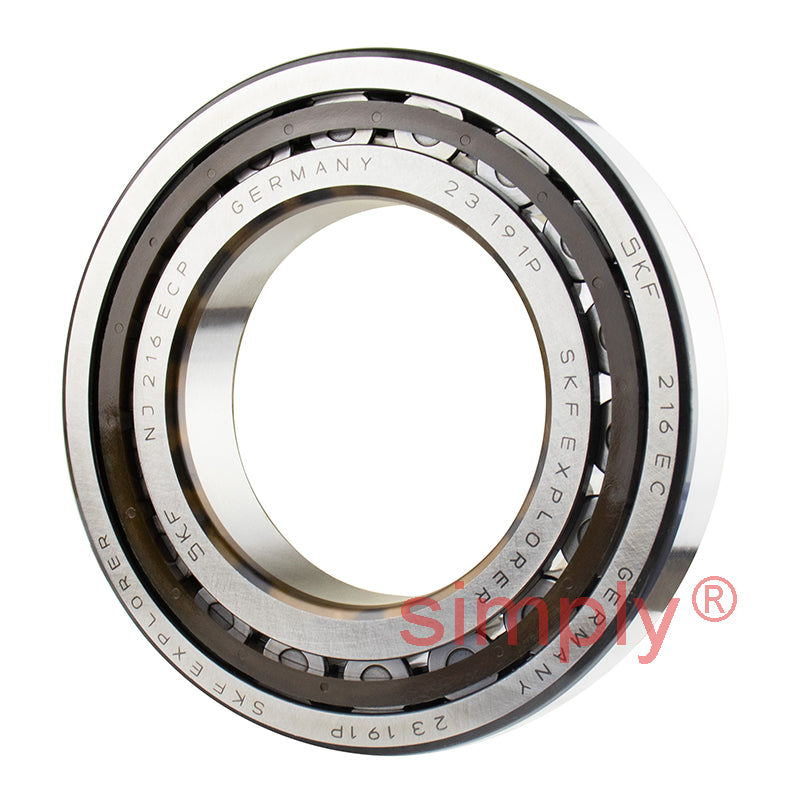

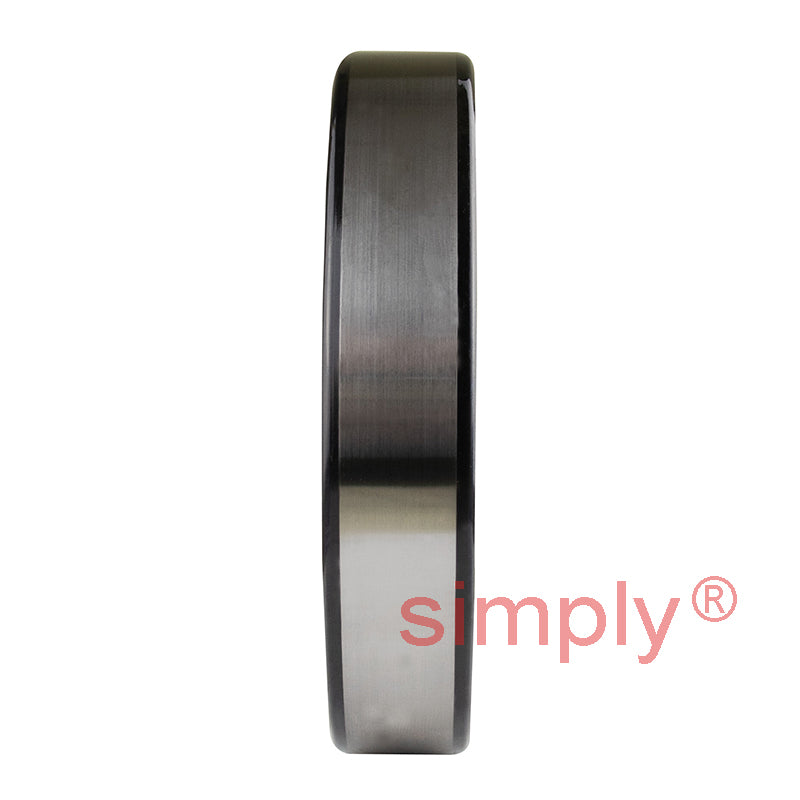

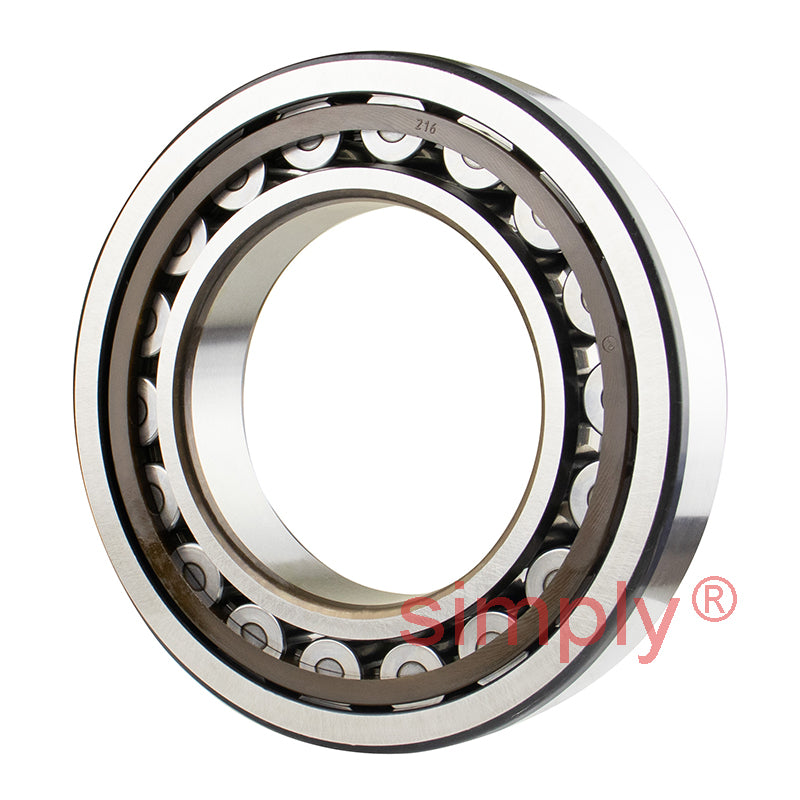

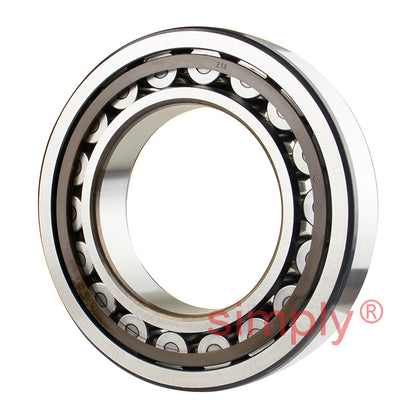

SKF NJ216ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x26mm
SKF NJ216ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x26mm
Regular price
CHF 139.33
ex VAT
Regular price
Sale price
CHF 139.33
ex VAT
In stock
Price Break
10+
CHF 124.00
19+
CHF 117.04
29+
CHF 115.64
39+
CHF 114.25
49+
CHF 112.86
74+
CHF 111.46
99+
CHF 104.50
199+
CHF 103.10
249+
CHF 101.71
499+
CHF 100.32
999+
CHF 97.53
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 160 kN |
| Static load Co | 166 kN |
| Fatigue load limit Pu | 21.2 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.6 kg |
| Alt cage | J.M.ML |
| d1 | 101mm |
| D1 | 123mm |
| F,E | 95.3mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 1.4mm |
| da min | 91mm |
| da max | 93mm |
| db | 104mm |
| Da max | 129mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ216EC |
| Angle Ring Weight | 0.21 kg |
| B1 | 8mm |
| B2 | 12.5mm |
