SKU: NJ2205ECP/C4-SKF

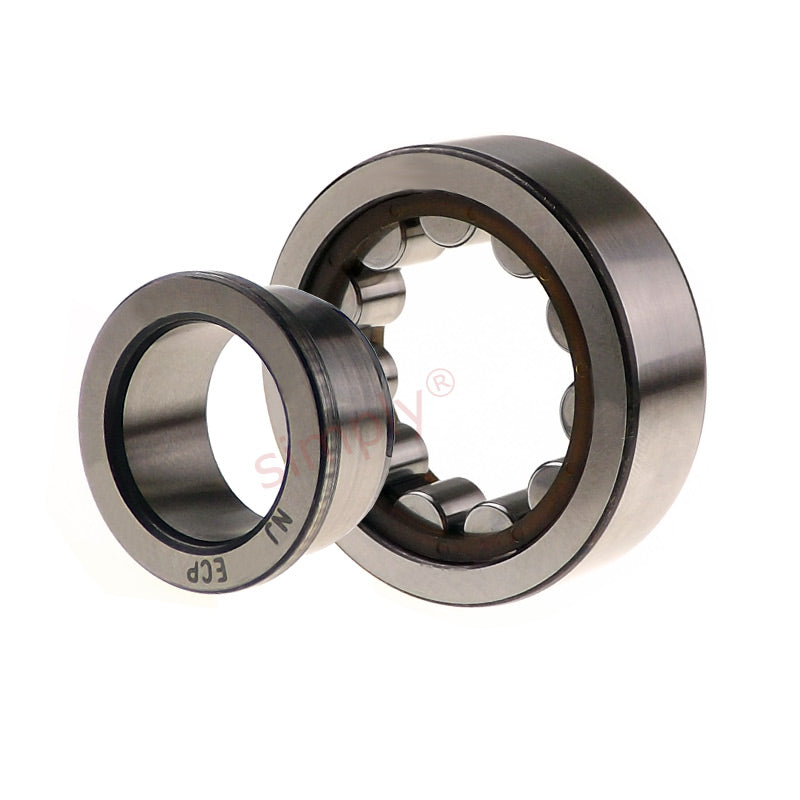

SKF NJ2205ECPC4 Single Row Cylindrical Roller Bearing with Polyamide Cage 25x52x18mm
SKF NJ2205ECPC4 Single Row Cylindrical Roller Bearing with Polyamide Cage 25x52x18mm
Regular price
CHF 47.00
ex VAT
Regular price
Sale price
CHF 47.00
ex VAT
In stock
Price Break
10+
CHF 36.83
19+
CHF 34.76
29+
CHF 34.35
39+
CHF 33.94
49+
CHF 33.52
74+
CHF 33.11
99+
CHF 31.04
199+
CHF 30.62
249+
CHF 30.21
499+
CHF 29.80
999+
CHF 28.97
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 18mm |
| Dynamic load C | 34.1 kN |
| Static load Co | 34 kN |
| Fatigue load limit Pu | 4.25 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.17 kg |
| Alt cage | ML |
| d1 | 34.7mm |
| D1 | 43.8mm |
| F,E | 31.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1.8mm |
| da min | 30mm |
| da max | 30mm |
| db | 36mm |
| Da max | 46.4mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.2 |
| Angle ring | HJ2205EC |
| Angle ring weight | 0.014 kg |
| B1 | 3mm |
| B2 | 6.5mm |
