SKU: NJ2209ECP/C3-SKF

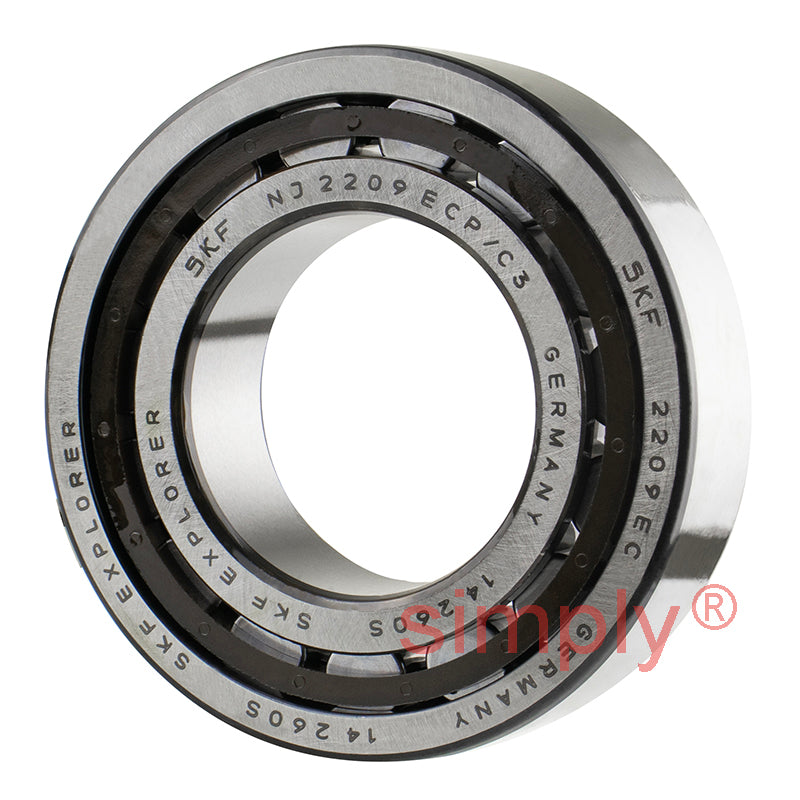

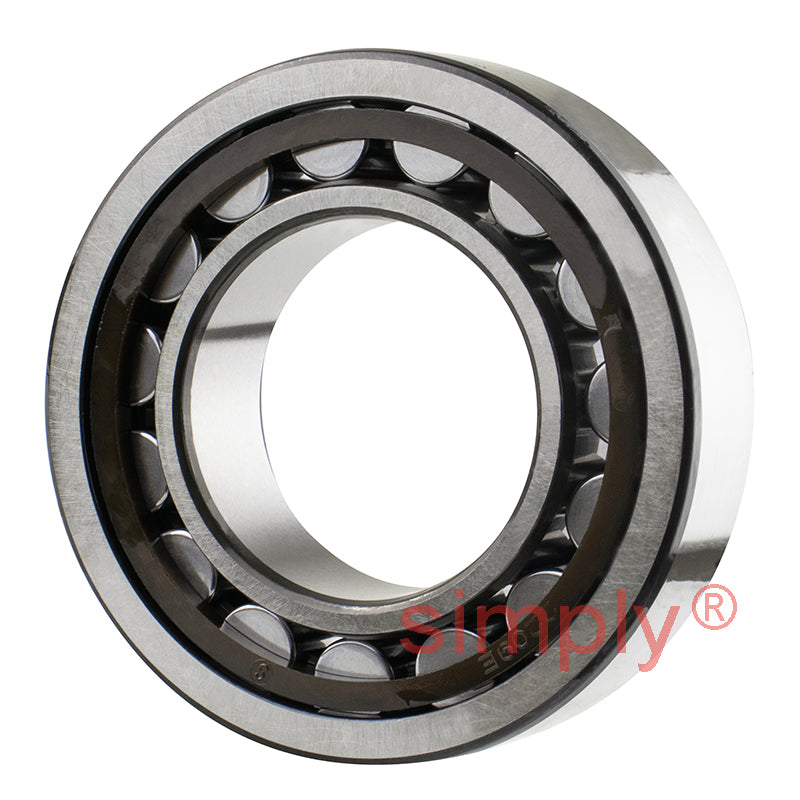

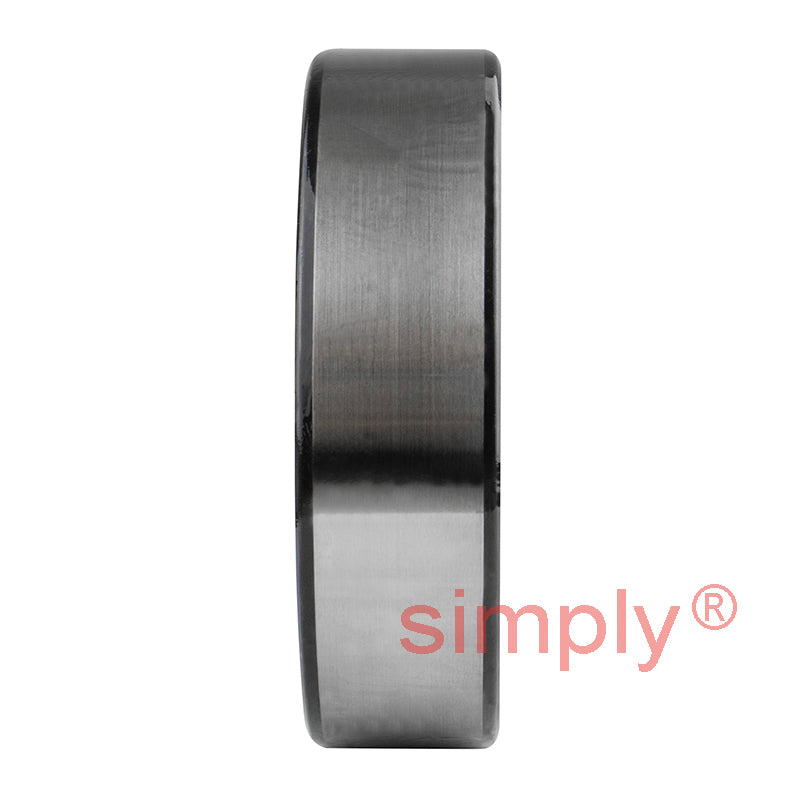

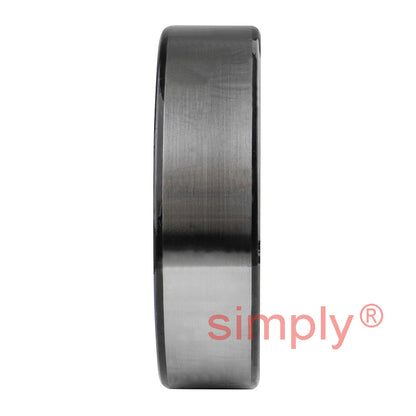

SKF NJ2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
SKF NJ2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
In stock
Price Break
10+
CHF 60.99
19+
CHF 57.56
29+
CHF 56.88
39+
CHF 56.19
49+
CHF 55.51
74+
CHF 54.82
99+
CHF 51.40
199+
CHF 50.71
249+
CHF 50.03
499+
CHF 49.34
999+
CHF 47.97
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 85 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.54 kg |
| Alt cage | J |
| d1 | 59mm |
| D1 | 73mm |
| F,E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.7mm |
| da min | 52mm |
| da max | 53mm |
| db | 56mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
