SKU: NJ2213ECP-SKF

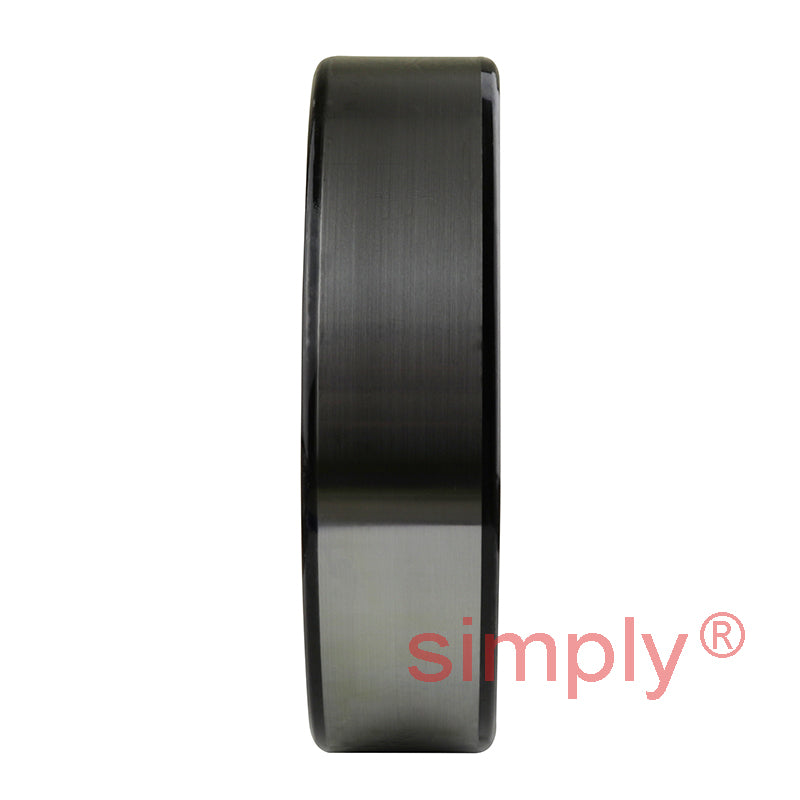

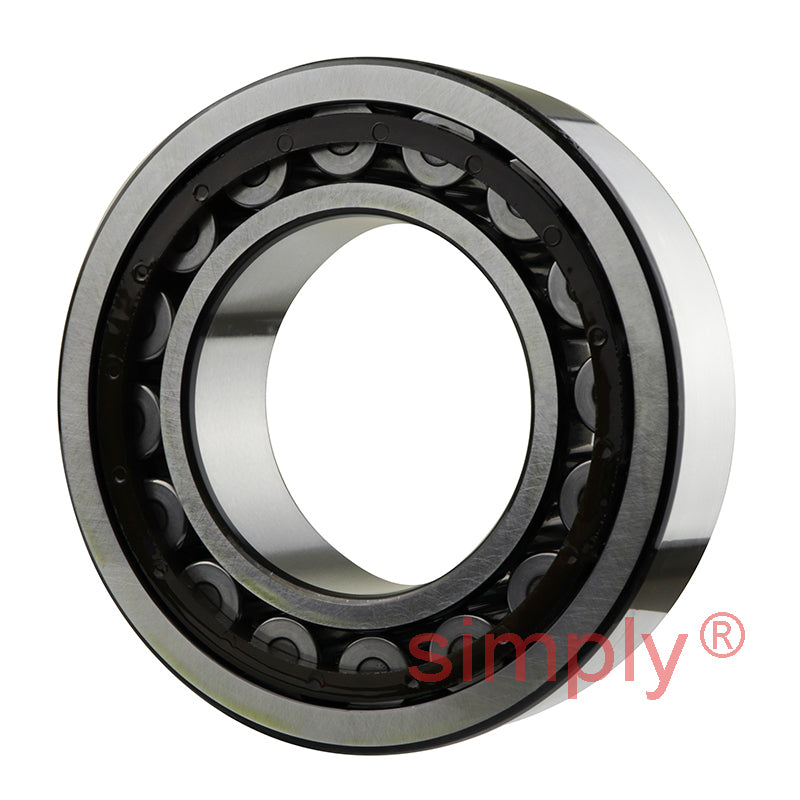

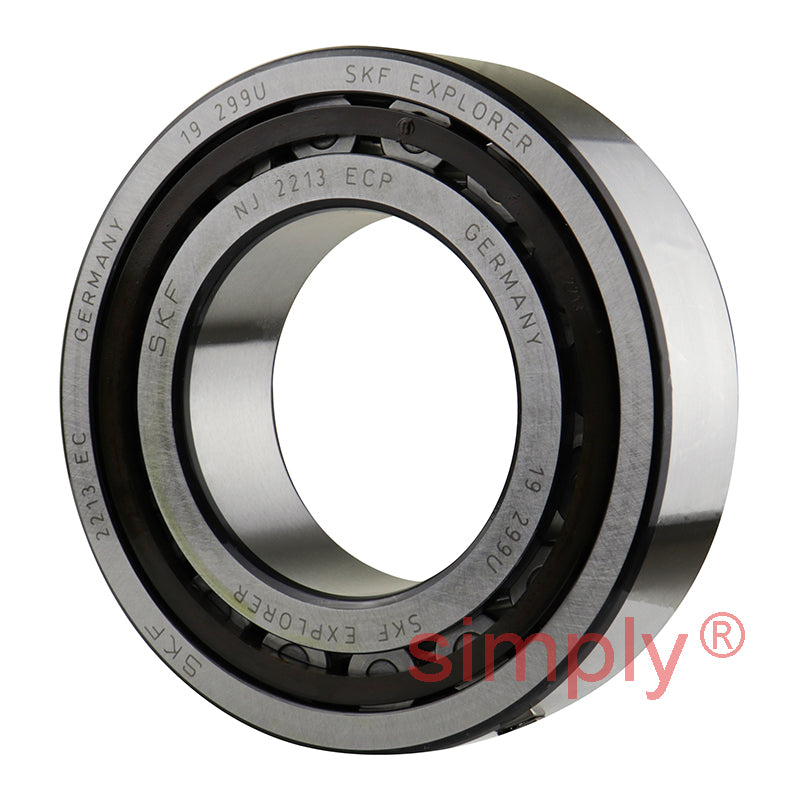

SKF NJ2213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x31mm
SKF NJ2213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x31mm
Regular price
CHF 121.00
ex VAT
Regular price
Sale price
CHF 121.00
ex VAT
In stock
Price Break
10+
CHF 95.81
19+
CHF 90.43
29+
CHF 89.35
39+
CHF 88.28
49+
CHF 87.20
74+
CHF 86.12
99+
CHF 80.74
199+
CHF 79.66
249+
CHF 78.59
499+
CHF 77.51
999+
CHF 75.36
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 31mm |
| Dynamic load C | 170 kN |
| Static load Co | 180 kN |
| Fatigue load limit Pu | 24 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.45 kg |
| Alt cage | J |
| d1 | 84.4mm |
| D1 | 104mm |
| F,E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.9mm |
| da min | 74mm |
| da max | 76mm |
| db | 87mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
| Angle ring | HJ2213EC |
| Angle Ring Weight | 0.13 kg |
| B1 | 6mm |
| B2 | 10.5mm |
