SKU: NJ2219-EU

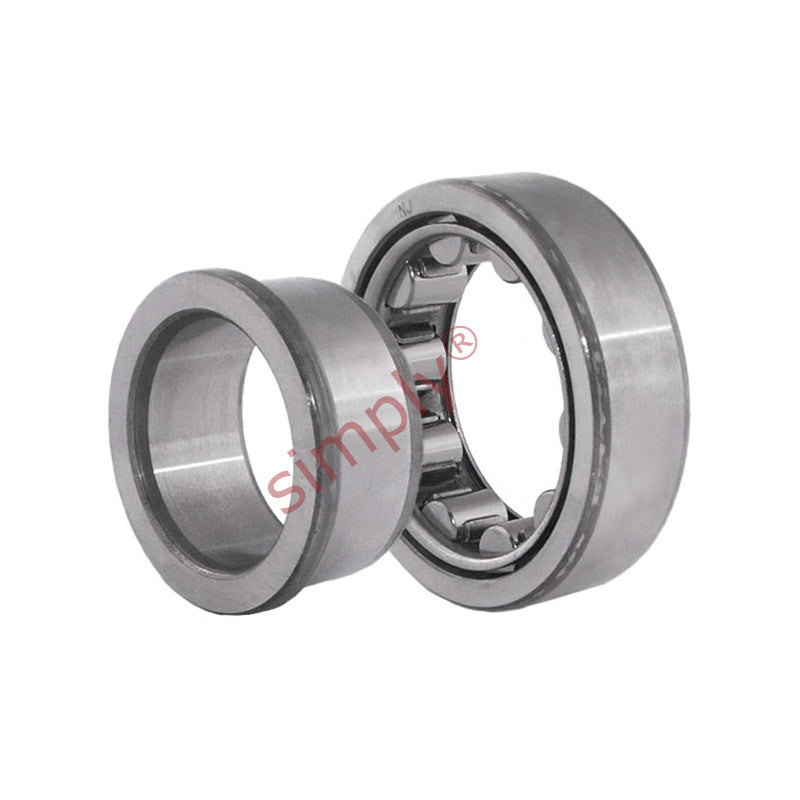

NJ2219 Budget Single Row Cylindrical Roller Bearing 95x170x43mm
NJ2219 Budget Single Row Cylindrical Roller Bearing 95x170x43mm
Regular price
CHF 205.00
ex VAT
Regular price
Sale price
CHF 205.00
ex VAT
In stock
Price Break
10+
CHF 162.79
19+
CHF 153.64
29+
CHF 151.81
39+
CHF 149.98
49+
CHF 148.15
74+
CHF 146.32
99+
CHF 137.18
199+
CHF 135.35
249+
CHF 133.52
499+
CHF 131.69
999+
CHF 128.03
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 43mm |
| Dynamic load C | 325 kN |
| Static load Co | 375 kN |
| Fatigue load limit Pu | 45.5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4800 rpm |
| Weight | 3.95 kg |
| Cage options | J.M |
| d1 | 120mm |
| D1 | 149mm |
| F, E | 112.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 3mm |
| da min | 107mm |
| da max | 110mm |
| db min | 123mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
