SKU: NJ2310ECML/C4-SKF

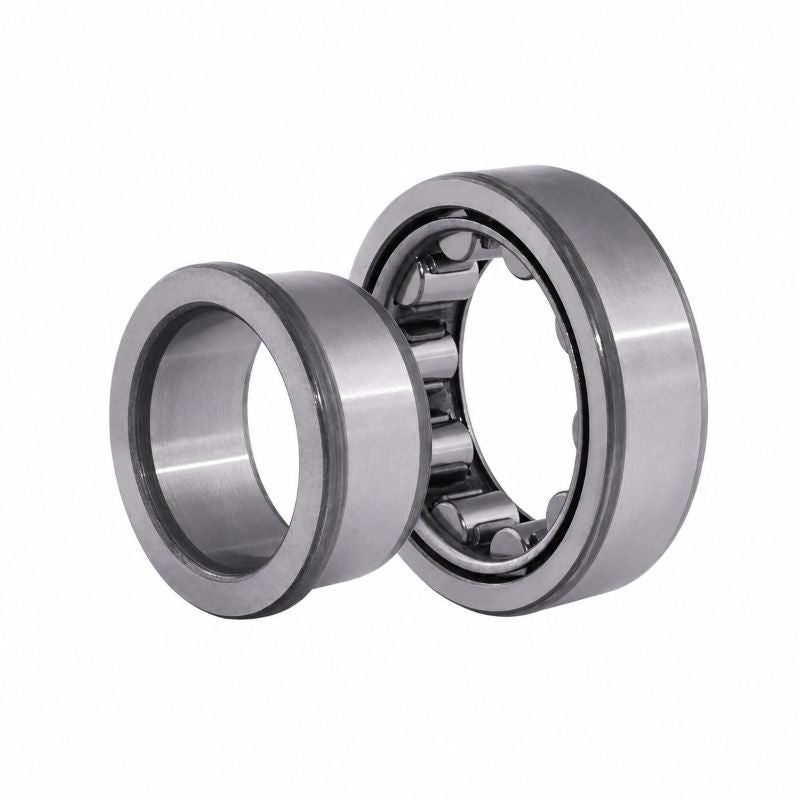

SKF NJ2310ECMLC4 Single Row Cylindrical Roller Bearing with Brass Cage 50x110x40mm
SKF NJ2310ECMLC4 Single Row Cylindrical Roller Bearing with Brass Cage 50x110x40mm
Regular price
CHF 285.39
ex VAT
Regular price
Sale price
CHF 285.39
ex VAT
In stock
Price Break
10+
CHF 254.00
19+
CHF 239.73
29+
CHF 236.87
39+
CHF 234.02
49+
CHF 231.17
74+
CHF 228.31
99+
CHF 214.04
199+
CHF 211.19
249+
CHF 208.33
499+
CHF 205.48
999+
CHF 199.77
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 40mm |
| Dynamic load C | 186 kN |
| Static load Co | 186 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.77 kg |
| Alt cage | ML |
| d1 | 71.2mm |
| D1 | 92.1mm |
| F,E | 65mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 3.4mm |
| da min | 61mm |
| da max | 63mm |
| db | 73mm |
| Da max | 99mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
