SKU: NJ2311ECML/C4-SKF

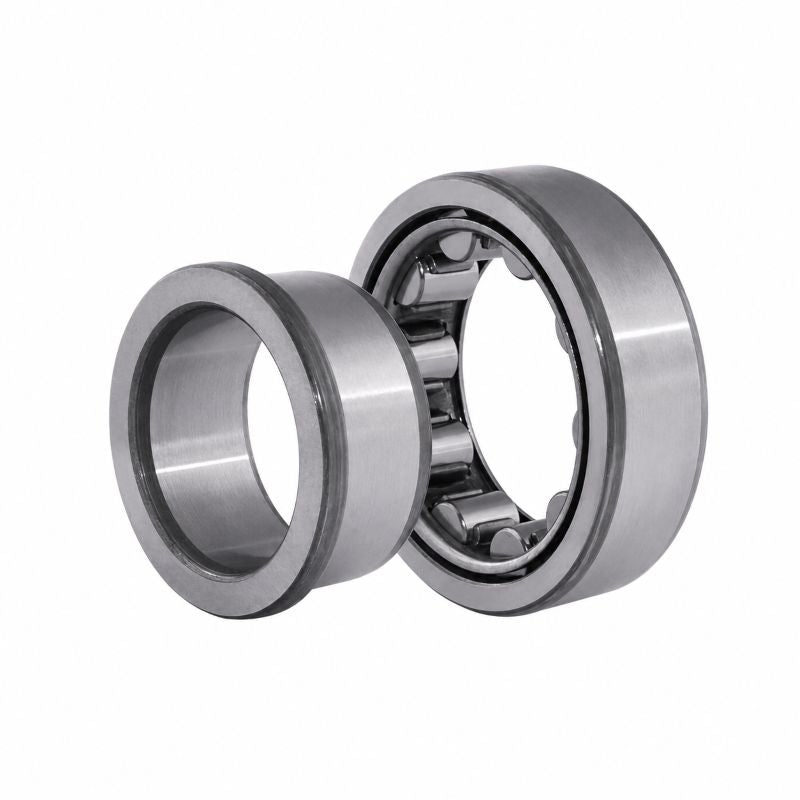

SKF NJ2311ECMLC4 Single Row Cylindrical Roller Bearing with Brass Cage 55x120x43mm
SKF NJ2311ECMLC4 Single Row Cylindrical Roller Bearing with Brass Cage 55x120x43mm
Regular price
CHF 441.00
ex VAT
Regular price
Sale price
CHF 441.00
ex VAT
In stock
Price Break
10+
CHF 350.60
19+
CHF 330.90
29+
CHF 326.96
39+
CHF 323.02
49+
CHF 319.08
74+
CHF 315.14
99+
CHF 295.45
199+
CHF 291.51
249+
CHF 287.57
499+
CHF 283.63
999+
CHF 275.75
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 43mm |
| Dynamic load C | 232 kN |
| Static load Co | 232 kN |
| Fatigue load limit Pu | 30.5 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 2.25 kg |
| Alt cage | ML |
| d1 | 77.5mm |
| D1 | 101mm |
| F,E | 70.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 3.5mm |
| da min | 66mm |
| da max | 68mm |
| db | 80mm |
| Da max | 109mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
| Angle ring | HJ2311EC |
| Angle ring weight | 0.2 kg |
| B1 | 9mm |
| B2 | 15.5mm |
