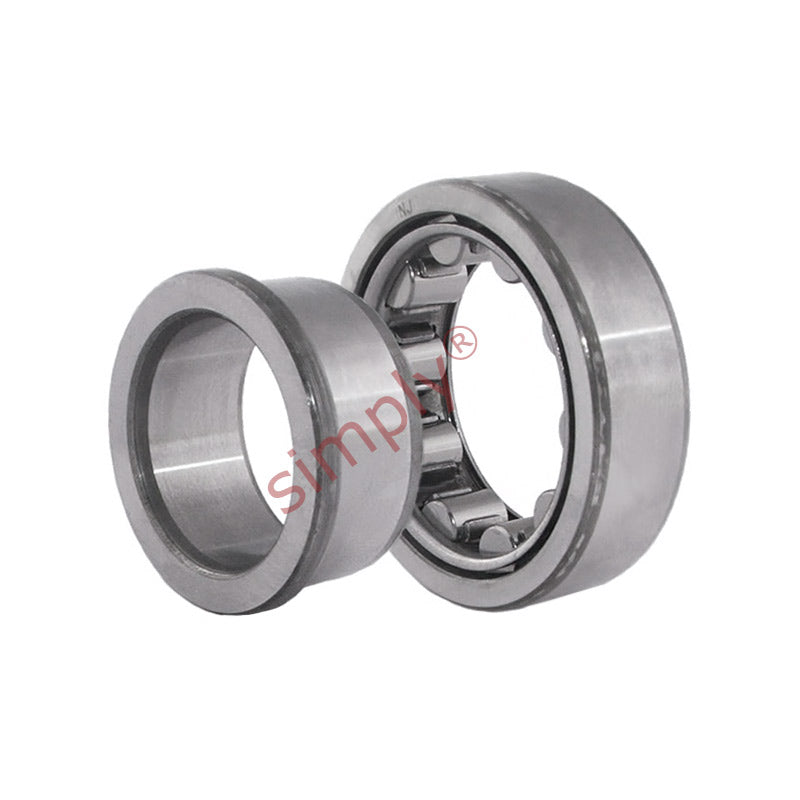

SKF NJ2312ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 60x130x46mm
SKF NJ2312ECMLC4VQ015 Single Row Cylindrical Roller Bearing with Brass Cage 60x130x46mm
Regular price
CHF 465.00
ex VAT
Regular price
Sale price
CHF 465.00
ex VAT
In stock
Price Break
10+
CHF 369.87
19+
CHF 349.09
29+
CHF 344.94
39+
CHF 340.78
49+
CHF 336.62
74+
CHF 332.47
99+
CHF 311.69
199+
CHF 307.53
249+
CHF 303.38
499+
CHF 299.22
999+
CHF 290.91
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 46mm |
| Dynamic load C | 260 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 34.5 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6700 rpm |
| Weight | 2.8 kg |
| Alt cage | ML |
| d1 | 84.3mm |
| D1 | 110mm |
| F,E | 77mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 3.6mm |
| da min | 72mm |
| da max | 74mm |
| db | 87mm |
| Da max | 118mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
| Angle ring | HJ2312EC |
| Angle ring weight | 0.24 kg |
| B1 | 9mm |
| B2 | 16mm |
