SKU: NJ306-CDX

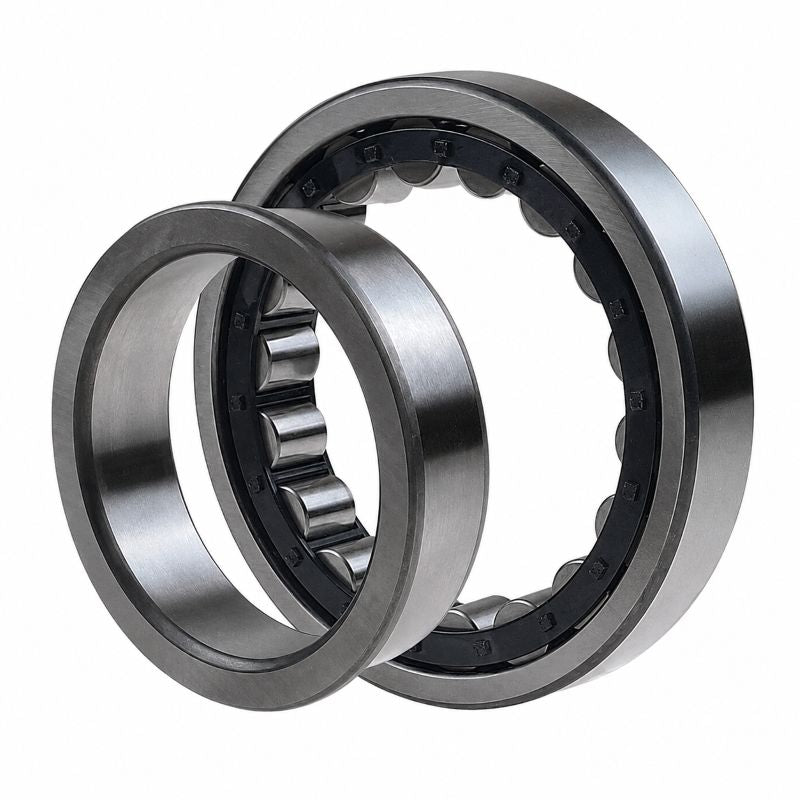

Codex NJ306 Single Row Cylindrical Roller Bearing 30x72x19mm
Codex NJ306 Single Row Cylindrical Roller Bearing 30x72x19mm
Regular price
CHF 36.88
ex VAT
Regular price
Sale price
CHF 36.88
ex VAT
In stock
Price Break
10+
CHF 32.82
19+
CHF 30.98
29+
CHF 30.61
39+
CHF 30.24
49+
CHF 29.87
74+
CHF 29.50
99+
CHF 27.66
199+
CHF 27.29
249+
CHF 26.92
499+
CHF 26.55
999+
CHF 25.82
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 58.5 kN |
| Static load Co | 48 kN |
| Fatigue load limit Pu | 6.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.36 kg |
| Cage options | J.M.ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F, E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 1.4mm |
| da min | 37mm |
| da max | 39mm |
| db min | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
| Angle ring | HJ306EC |
| Angle ring weight | 0.042kg |
| B1 | 5mm |
| B2 | 8.5mm |
