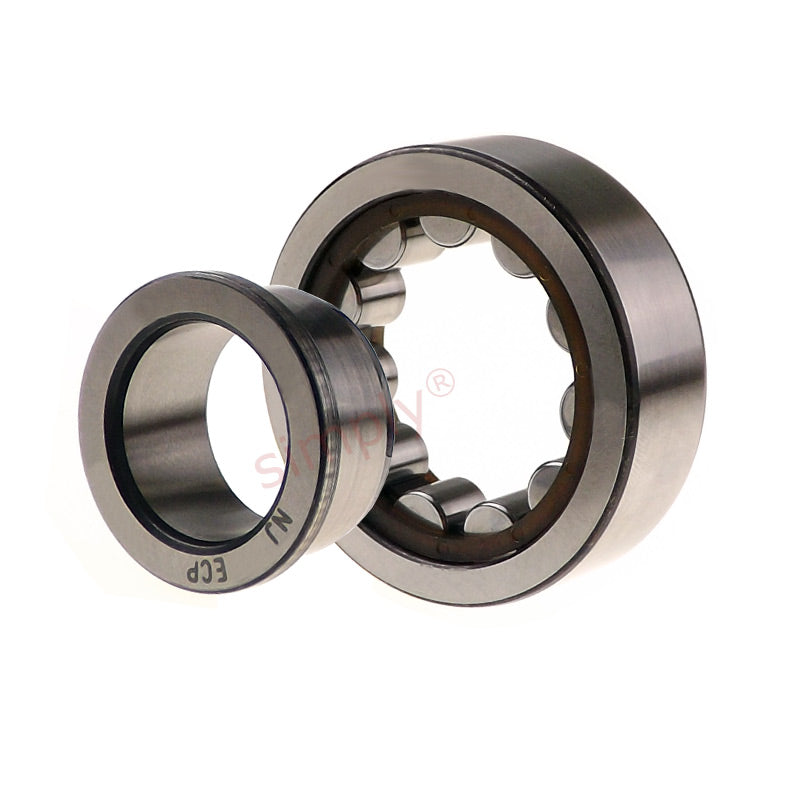

SKF NJ314ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x35mm
SKF NJ314ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x35mm
Regular price
CHF 176.00
ex VAT
Regular price
Sale price
CHF 176.00
ex VAT
In stock
Price Break
10+
CHF 140.03
19+
CHF 132.16
29+
CHF 130.59
39+
CHF 129.02
49+
CHF 127.44
74+
CHF 125.87
99+
CHF 118.00
199+
CHF 116.43
249+
CHF 114.86
499+
CHF 113.28
999+
CHF 110.14
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 236 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.9 kg |
| Alt cage | J.M.ML |
| d1 | 97.3mm |
| D1 | 127mm |
| F,E | 89mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.8mm |
| da min | 82mm |
| da max | 86mm |
| db | 100mm |
| Da max | 138mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ314EC |
| Angle Ring Weight | 0.32 kg |
| B1 | 10mm |
| B2 | 15.5mm |
