SKU: NJ318ECM/C4VA301-SKF

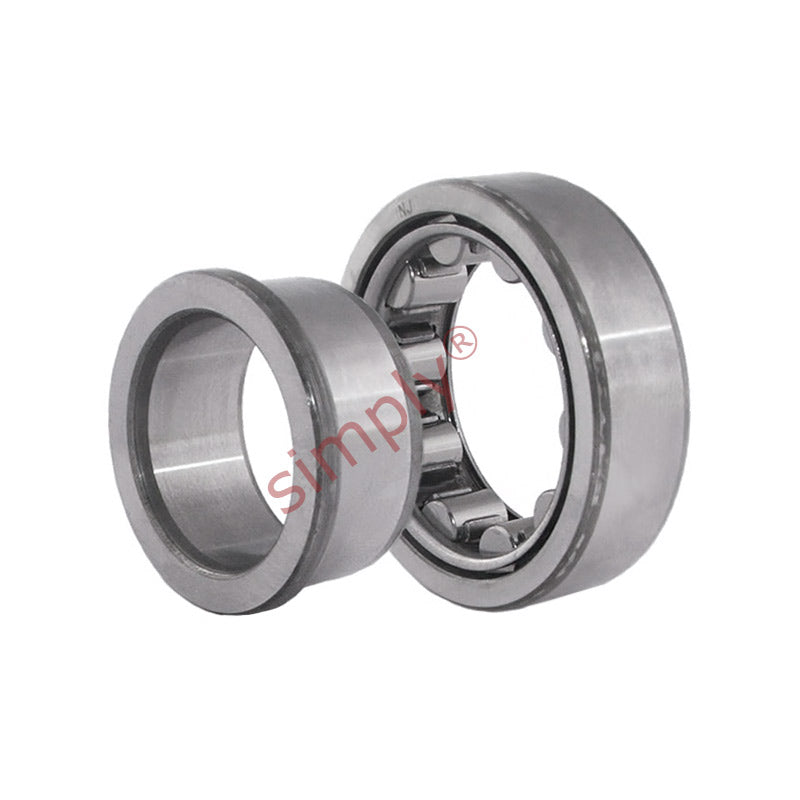

SKF NJ318ECMC4VA301 Single Row Cylindrical Roller Bearing with Brass Cage 90x190x43mm
SKF NJ318ECMC4VA301 Single Row Cylindrical Roller Bearing with Brass Cage 90x190x43mm
Regular price
CHF 736.00
ex VAT
Regular price
Sale price
CHF 736.00
ex VAT
In stock
Price Break
10+
CHF 585.91
19+
CHF 553.00
29+
CHF 546.41
39+
CHF 539.83
49+
CHF 533.25
74+
CHF 526.66
99+
CHF 493.75
199+
CHF 487.16
249+
CHF 480.58
499+
CHF 474.00
999+
CHF 460.83
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 43mm |
| Dynamic load C | 365 kN |
| Static load Co | 360 kN |
| Fatigue load limit Pu | 43 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4500 rpm |
| Weight | 5.4 kg |
| Alt cage | J.M.ML |
| d1 | 124mm |
| D1 | 162mm |
| F,E | 113.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.5mm |
| da min | 104mm |
| da max | 110mm |
| db | 127mm |
| Da max | 176mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ318EC |
| Angle ring weight | 0.6 kg |
| B1 | 12mm |
| B2 | 18.5mm |
