SKU: NJ324ECJ/C3-SKF

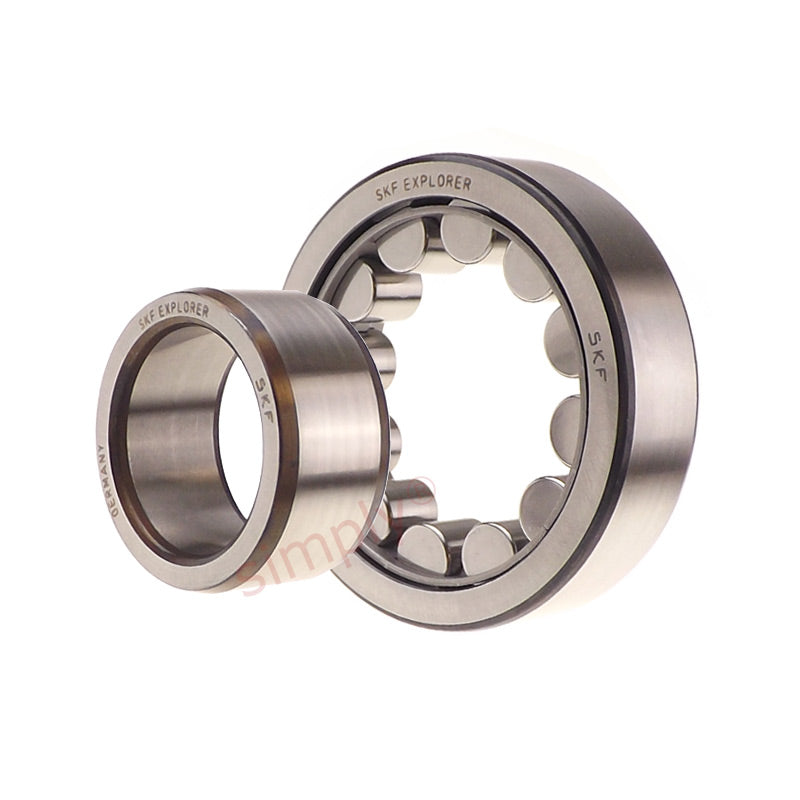

SKF NJ324ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x260x55mm
SKF NJ324ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x260x55mm
Regular price
CHF 852.40
ex VAT
Regular price
Sale price
CHF 852.40
ex VAT
In stock
Price Break
10+
CHF 758.64
19+
CHF 716.02
29+
CHF 707.49
39+
CHF 698.97
49+
CHF 690.44
74+
CHF 681.92
99+
CHF 639.30
199+
CHF 630.78
249+
CHF 622.25
499+
CHF 613.73
999+
CHF 596.68
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 13.3 kg |
| Alt cage | J.M.ML |
| d1 | 168mm |
| D1 | 219mm |
| F,E | 154mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3.7mm |
| da min | 134mm |
| da max | 150mm |
| db | 171mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ324EC |
| Angle ring weight | 1.4 kg |
| B1 | 14mm |
| B2 | 22.5mm |
