SKU: NJ324ECJ-SKF

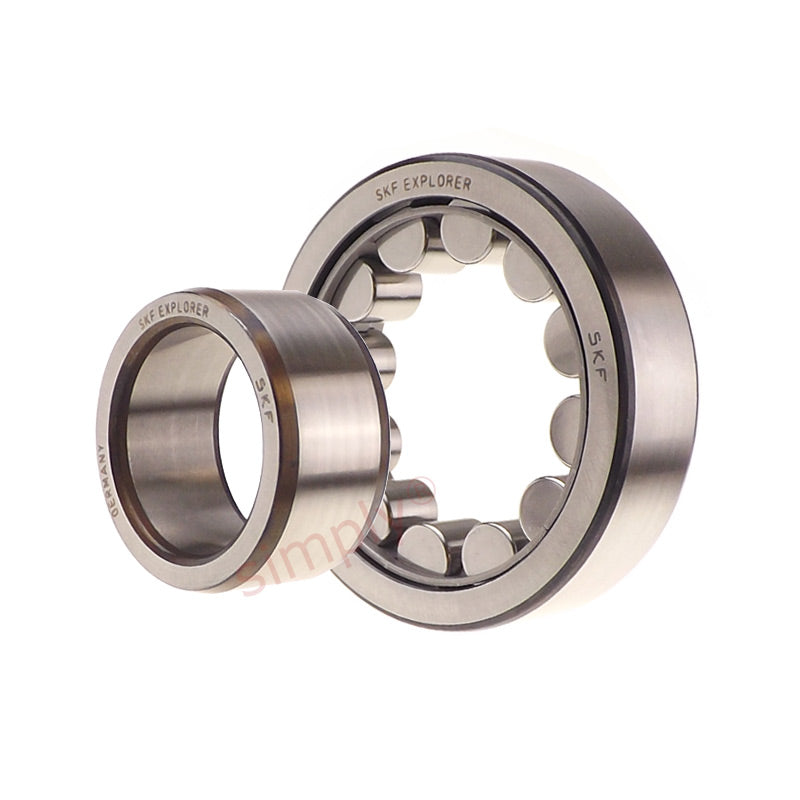

SKF NJ324ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x260x55mm
SKF NJ324ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x260x55mm
Regular price
CHF 789.71
ex VAT
Regular price
Sale price
CHF 789.71
ex VAT
In stock
Price Break
10+
CHF 702.84
19+
CHF 663.36
29+
CHF 655.46
39+
CHF 647.56
49+
CHF 639.67
74+
CHF 631.77
99+
CHF 592.28
199+
CHF 584.39
249+
CHF 576.49
499+
CHF 568.59
999+
CHF 552.80
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 13.3 kg |
| Alt cage | J.M.ML |
| d1 | 168mm |
| D1 | 219mm |
| F,E | 154mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3.7mm |
| da min | 134mm |
| da max | 150mm |
| db | 171mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ324EC |
| Angle Ring Weight | 1.4 kg |
| B1 | 14mm |
| B2 | 22.5mm |
