SKU: NJ408-EU

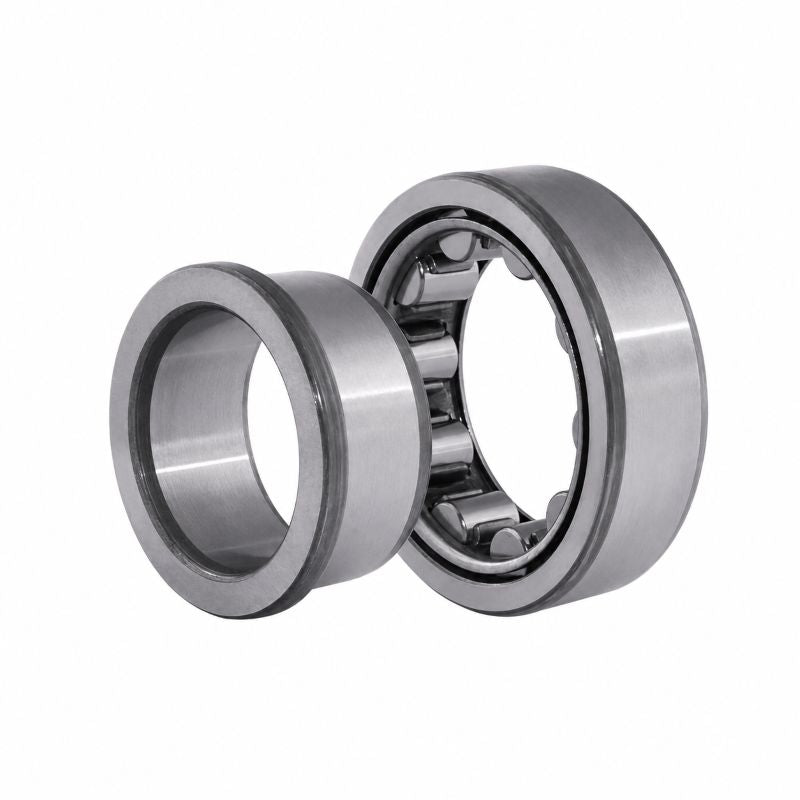

NJ408 Budget Single Row Cylindrical Roller Bearing 40x110x27mm
NJ408 Budget Single Row Cylindrical Roller Bearing 40x110x27mm
Regular price
CHF 111.00
ex VAT
Regular price
Sale price
CHF 111.00
ex VAT
In stock
Price Break
10+
CHF 88.02
19+
CHF 83.07
29+
CHF 82.08
39+
CHF 81.09
49+
CHF 80.11
74+
CHF 79.12
99+
CHF 74.17
199+
CHF 73.18
249+
CHF 72.19
499+
CHF 71.21
999+
CHF 69.23
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 96.8 kN |
| Static load Co | 90 kN |
| Fatigue load limit Pu | 11.6 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.3 kg |
| d1 | 64.8mm |
| D1 | 84.2mm |
| F, E | 58mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 2.5mm |
| da min | 53mm |
| da max | 56mm |
| db min | 67mm |
| Da max | 97mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
